For Arduino Raspberry Pi MAX7219 Dot led Matrix MCU control LED Display Module

MAX7219 Dot

1.A single module can drive an 8 * 8 common cathode lattice
2.Module Operating voltage: 5V.
3.Module size: 5 cm long X 3.2 cm wide X 1.5 cm high
4.With four screws hole, aperture 3mm, by using our M3 Tongzhu fixed
5.Module with input and output interfaces, supports multiple modules cascade
6.Led colour:Red

Wiring instructions:
1.The module left as an input port to the output port on the right.
2.The control of a single module, simply input port to the CPU
3.Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on ...

51 MCU, for example:

VCC → 5V
GND → GND
DIN → P22
CS → P21
CLK → P20

DIY Kits(Green board)                                                          Welded Product

DIY Kits(Blue board)

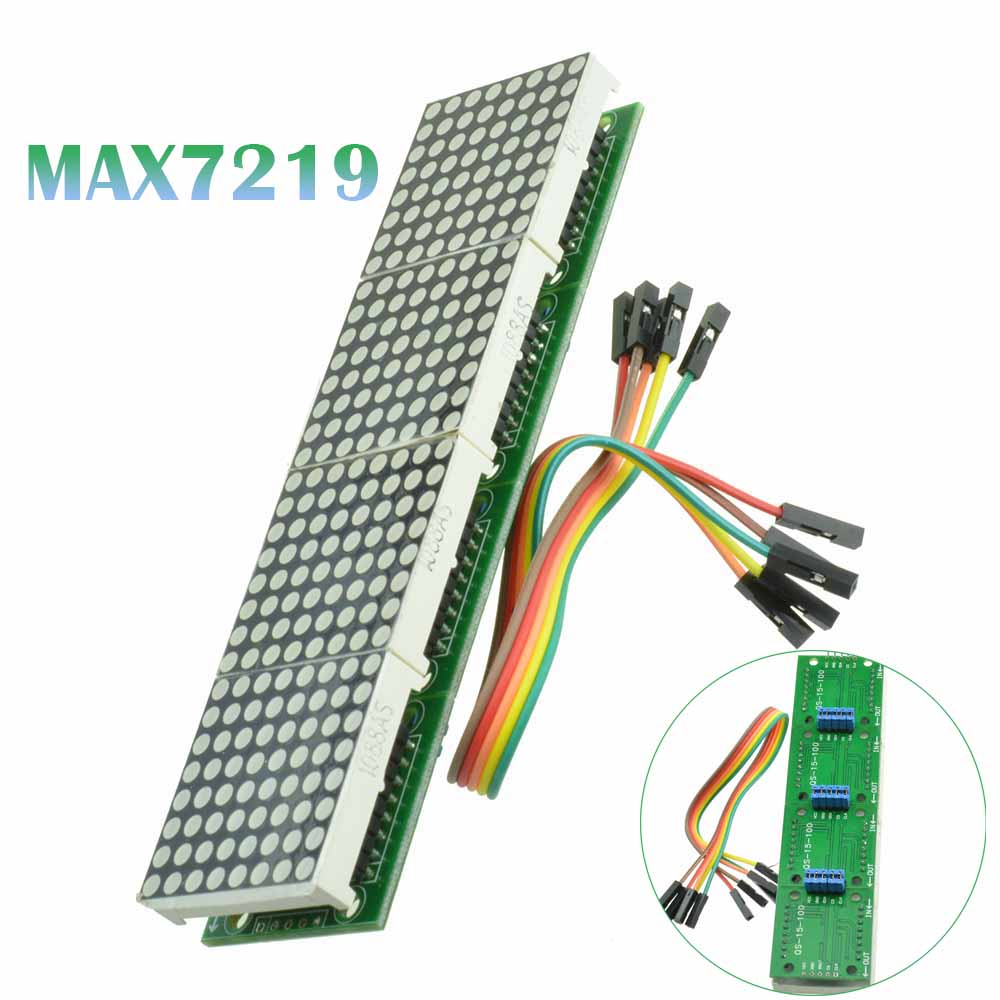

4 In 1 Display



A single module can drive a 8x8 dot matrix common cathode
Operating Voltage: 5V
Dimensions: 12.8X12.8X1.3cm/
Fixing screws with 64 holes with a diameter 3mm
Module with input and output interfaces, support for cascading multiple modules
　
Wiring Instructions:
The left side of the module to the input port, the right to an output port
When the control of a single module, simply input port connected to CPU
When a plurality of cascaded modules, input and output termination CPU,
an input terminal of the second output end of the first module a module, t
he first two modules of the input terminal of the three termination modules, and so on...
51 microcontrollers

Package included:
1Pcs(Welded/Kits,depends on your choice!)
