Product Description

Winkhaus Cobra STV 2 Hook Split Spindle Door Lock - 20mm Radius Faceplate - 45mm Backset - PZ92

High-security door locking mechanism with versatile split spindle functionality for maximum home protection

The Winkhaus Cobra STV 2 Hook Door Lock provides exceptional security for your exterior doors with its robust dual hook design. This high-quality replacement mechanism is specifically engineered to replace damaged Winkhaus Cobra door locks, ensuring a perfect fit and reliable operation for your home security system.

Featuring innovative split spindle functionality, this versatile lock offers enhanced security when paired with lever/pad handle sets, preventing unauthorised entry from outside without a key. Crafted with precision engineering and premium materials, this lock delivers smooth operation and exceptional durability that homeowners can rely on for years to come.

Key Benefits:

• Enhanced Security – Features 2 hooks and 1 deadbolt for superior protection against forced entry attempts
• Drop-In Replacement – Precision engineered as an exact replacement for existing 2 Hook Winkhaus Cobra STV locks
• Versatile Operation – Split spindle functionality allows use with lever/pad or standard lever/lever handle configurations
• Reversible Design – Non-handed mechanism can be easily configured for left or right-handed doors
• Simple Function Selection – Easy activation of split spindle mode using a flathead screwdriver
• Smooth Operation – Lift lever action ensures effortless door opening and closing with minimal effort
• Durable Construction – Manufactured to exacting standards for long-term performance and reliability

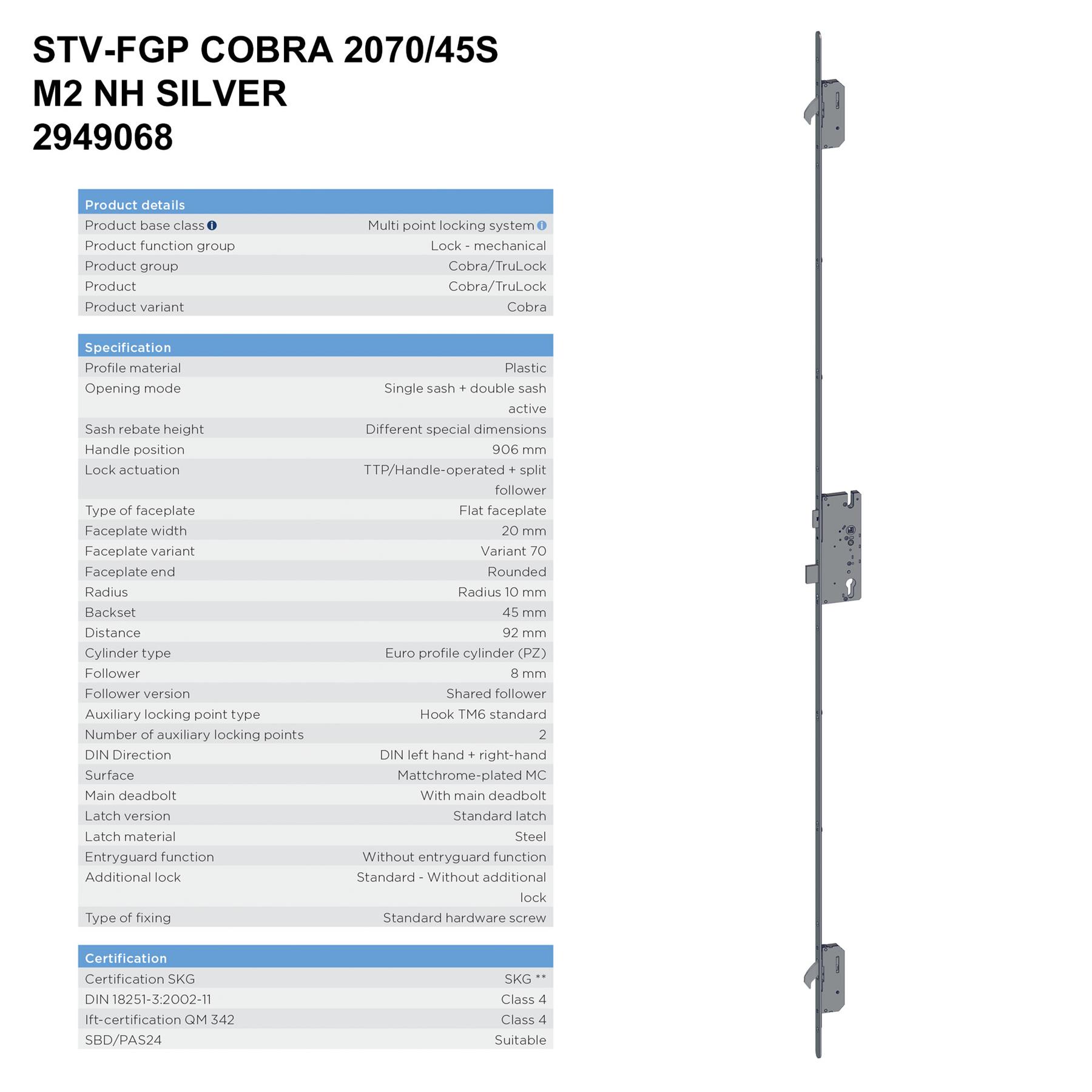

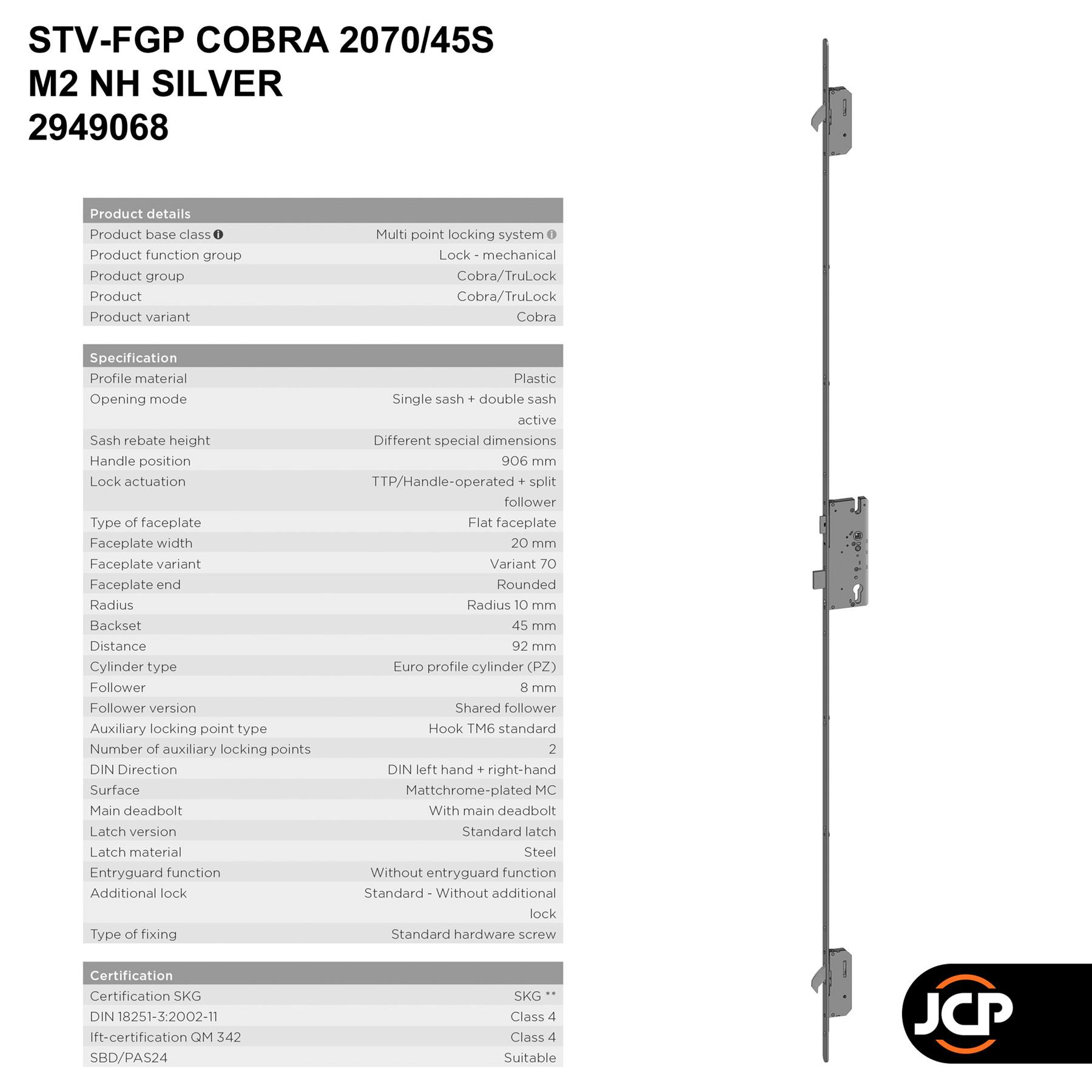

Product Specifications:

• Brand: Winkhaus
• Model: 2949068 Cobra STV 2 Hook
• Lock Type: Split Follower Door Lock
• Latch Type: Reversible
• Faceplate Width: 20mm
• Faceplate Style: Radius
• Backset: 45mm
• PZ Centre: 92mm
• Spindle Size: 8mm

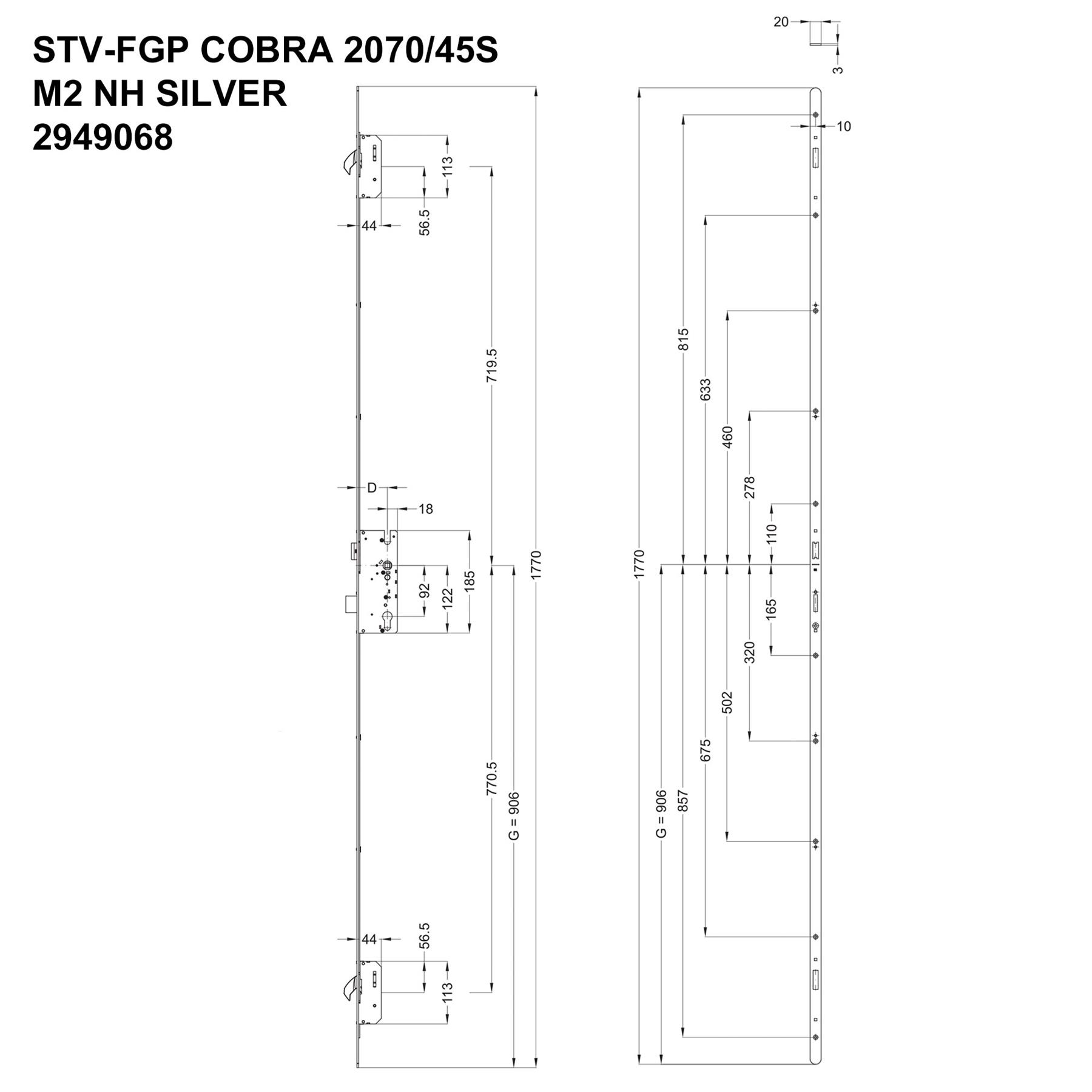

• Total Lock Length: 1770mm
• Centre Case Length: 185mm
• Locking Points: 2 Hooks, 1 Deadbolt
• Lock Type: Lift Lever with Lever/Lever Operation

All measurements are approximate and may vary slightly due to manufacturing tolerances.

Package Contents:

• 1 × Winkhaus Cobra STV 2 Hook Door Lock (20mm Radius Faceplate, 45mm Backset, PZ92)

Frequently Asked Questions:

Will this lock fit my existing door?
This lock is designed as a direct replacement for Winkhaus Cobra STV door locks with a 20mm radius faceplate, 45mm backset and 92mm PZ centre. Before purchasing, please confirm these measurements match your existing lock for compatibility.

How do I switch between split spindle and standard operation?
To activate the split spindle function, locate the small rectangular hole next to the spindle hole and insert a flathead screwdriver. Push gently to roll the pin to the opposite side, which activates the reverse function. To revert to standard operation, simply repeat the process.

What's the difference between split spindle and standard operation?
In split spindle mode (when used with a lever/pad handle set), the outside handle cannot open the door without a key, providing additional security. In standard mode, both handles operate the latch normally.

Does this lock require special handles?
For split spindle functionality, you'll need a lever/pad handle combination. For standard operation, any lever/lever handle set with 8mm spindles and 92mm PZ centres will be compatible.

How do I reverse the Lock?
First ensure the latch is retracted, then undo the screw on the back of the lockcase to remove the latch. Reverse the latch, reinsert it, and replace the screw. The lock is now configured for the opposite door direction.

Why Choose Winkhaus Cobra STV 2 Hook Door Lock?

The Winkhaus Cobra STV 2 Hook Door Lock combines premium security features with versatile functionality, making it an excellent choice for homeowners seeking reliable protection. With its precision engineering, adaptable split spindle operation, and robust dual hook design, this lock offers exceptional performance and peace of mind. Winkhaus's reputation for quality ensures you're investing in a lock mechanism that delivers consistent security and smooth operation throughout its service life.
