ULTRAMAX NP7-12 12V 7Ah SEALED LEAD ACID BATTERY
AGM ? VRLA ? RECHARGEABLE ? MAINTENANCE-FREE ? F1 TERMINALS

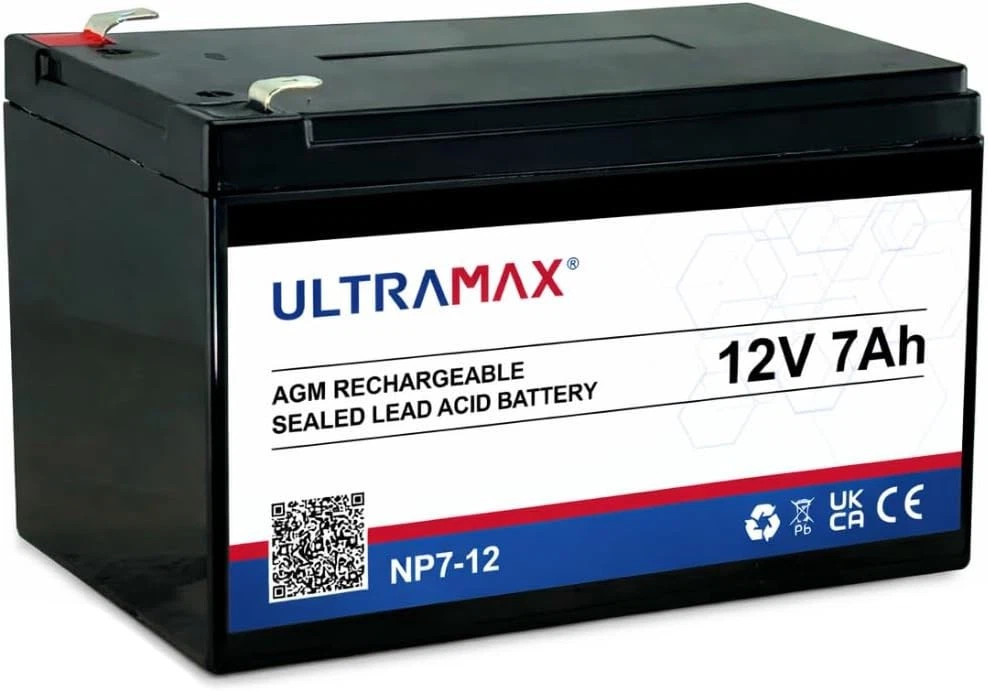

Ultramax NP7-12 12V 7Ah Sealed Lead Acid Battery
ULTRAMAX NP7-12 ? RELIABLE 12V 7Ah AGM SEALED BATTERY

The ULTRAMAX NP7-12 is a high-quality 12V 7Ah sealed lead acid AGM battery designed for standby, backup and general-purpose rechargeable applications. It is an excellent replacement for many commonly used 12V 6Ah, 7Ah, 7.2Ah, 7.5Ah and 8Ah sealed lead acid batteries where the physical dimensions, terminal type and charging requirements match.

The compact standard-size case makes the ULTRAMAX NP7-12 suitable for a huge range of equipment, including UPS systems, alarm panels, security systems, CCTV, emergency lighting, fire alarm panels, access control systems, mobility equipment, stair lifts, lawn equipment, ride-on toys, bait boats, portable equipment and many other 12V applications.

The battery uses sealed AGM/VRLA technology, meaning there is no need to add water or perform routine electrolyte maintenance. It is rechargeable and designed for convenient installation in equipment where a compact 12V standby or portable power source is required.

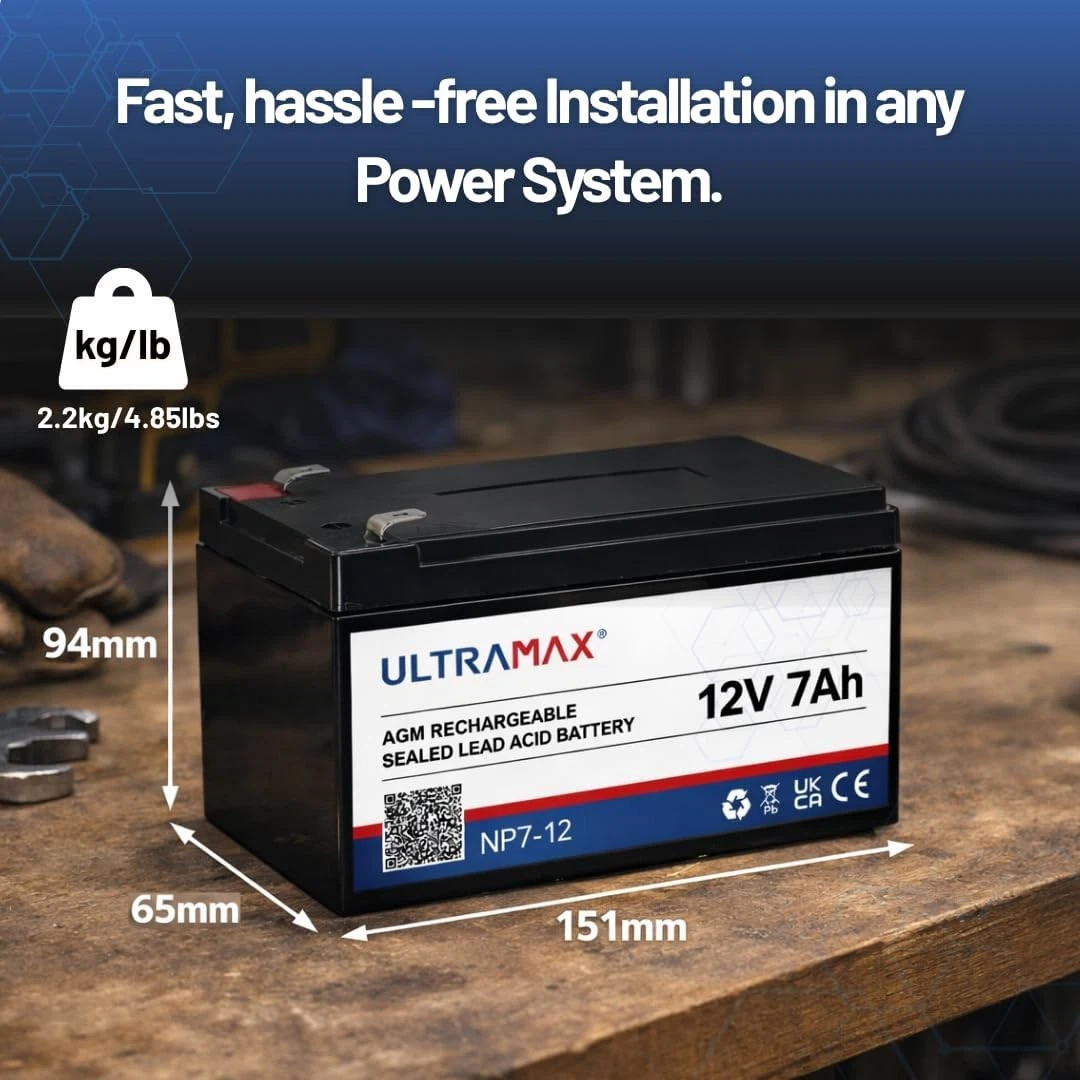

Ultramax NP7-12 Battery Dimensions
KEY FEATURES & BENEFITS
Voltage 12V
Capacity 7Ah (20-hour rate)
Battery Technology AGM / VRLA Sealed Lead Acid
Terminal Type F1 / T1 ? 4.75mm Fast-On / Spade
Length 151mm
Width 65mm
Height Approx. 94mm case height; allow additional clearance for terminals
Weight Approximately 2.2kg
Rechargeable Yes
Maintenance Maintenance-free
Orientation Can be used in various orientations ? follow equipment manufacturer's instructions
Warranty 12 Months
ULTRAMAX Product Code SLAUMXNP7-12
Barcode 5036446800411
Ultramax AGM SLA VRLA Battery Technology
WHY CHOOSE THE ULTRAMAX NP7-12?
  • Excellent value: Provides a cost-effective alternative to many premium-priced branded replacement batteries.
  • 7Ah capacity: Suitable for a wide variety of standby and general-purpose 12V applications.
  • AGM technology: Absorbed Glass Mat construction provides a sealed rechargeable battery design.
  • Maintenance-free: No regular topping-up of electrolyte is required.
  • Compact standard size: 151mm x 65mm footprint is commonly used across the 12V 7Ah SLA battery market.
  • Widely compatible: Suitable as a replacement for many 12V 6Ah, 7Ah, 7.2Ah, 7.5Ah and 8Ah batteries where dimensions and terminals match.
  • Easy installation: F1 4.75mm Fast-On / Spade terminals are widely used on small SLA batteries.
  • Sealed construction: Designed to minimise the risk of electrolyte leakage during normal use.
  • Rechargeable: Designed for repeated charging and use with compatible equipment.
  • UK-backed warranty: Supplied with a 12-month warranty.

ULTRAMAX batteries offer a practical balance between price, performance, compatibility and availability. For customers who need a replacement for an expensive branded 12V 7Ah SLA battery, the NP7-12 provides an economical alternative when the original battery's specifications match.

WHERE CAN THE ULTRAMAX NP7-12 BE USED?

The ULTRAMAX NP7-12 is suitable for many standby, backup and portable power applications, including but not limited to:

SECURITY & SAFETY
? Burglar alarm systems
? Intruder alarm panels
? Security systems
? CCTV systems
? Access control systems
? Security gates
? Automatic gates
? Door entry systems
? Intercom systems
? Fire alarm panels
? Fire/security backup systems 		POWER BACKUP
? UPS systems
? Small UPS units
? Emergency power systems
? Emergency lighting
? Exit lighting
? Backup power systems
? Alarm backup supplies
? Telecommunications equipment
? Network equipment backup
? Control panels
MOBILITY & ACCESSIBILITY
? Stair lifts
? Mobility equipment
? Mobility scooters where the original specification matches
? Electric wheelchairs where the original specification matches
? Portable mobility equipment
? Lifting equipment
? Small hoists and backup systems 		GARDEN & OUTDOOR EQUIPMENT
? Lawn mowers
? Ride-on lawn equipment
? Garden equipment
? Electric garden machinery
? Small powered equipment
? Sprayers and pumps
? Portable 12V equipment
LEISURE & MARINE
? Bait boats
? Fishing equipment
? Portable fish-finding equipment
? Small marine equipment
? Portable pumps
? Camping equipment
? Portable power supplies 		TOYS & PORTABLE EQUIPMENT
? Ride-on toys
? Electric toy cars
? Children's ride-on vehicles
? Portable electronics
? Small pumps
? Portable lighting
? Test equipment
? General 12V electronic equipment
MEDICAL & INDUSTRIAL
? Medical equipment where specification matches
? Portable medical equipment
? Industrial control equipment
? Measuring equipment
? Electronic control systems
? Backup instrumentation
? Portable industrial equipment 		SOLAR & GENERAL POWER
? Small solar storage systems
? 12V backup systems
? Portable power projects
? DIY electronics
? Low-voltage equipment
? Backup lighting
? General-purpose 12V applications
Ultramax NP7-12 Battery Applications
BATTERY REPLACEMENT & CROSS-REFERENCE LIST

The ULTRAMAX NP7-12 is designed as a replacement for many commonly available 12V 7Ah-class sealed lead acid / AGM / VRLA batteries. The following are examples of common battery brands and part numbers that may be replaced, subject to matching the original battery's physical dimensions, terminal type, capacity and charging requirements.

YUASA

Yuasa NP7-12 ? Yuasa NP7-12FR ? Yuasa NP7-12L ? Yuasa NP7-12LFR

PANASONIC

Panasonic LC-R127R2P ? Panasonic LC-R127R2P1 ? Panasonic LCR-12V7.2P ? Panasonic LCR12V6.5BP ? Panasonic LE-R127R2CH1

CSB

CSB GP1270 ? CSB GP1272 ? CSB GP1272F1 ? CSB GP1272F2

POWER-SONIC

Power-Sonic PS-1270 ? PS-1270-F1 ? PS-1270-F2 ? PS-1280 ? PS1270F1 ? PS1280 ? PSH-1280FR

ENERSYS / GENESIS

EnerSys NP7-12T and other 12V 7Ah-class VRLA batteries where specifications match

B.B. BATTERY

B.B. Battery BP7-12 ? BP7.5-12 ? BP8-12

LEoch

Leoch DJW12-7.0 ? DJW12-7.2 ? DJW12-7.5

RITAR

Ritar RT1270 ? Ritar RT1272 ? Ritar RT1280

CASIL

Casil CA1270 ? Casil CA1272

MIGHTY MAX

Mighty Max ML7-12 and compatible 12V 7Ah F1 SLA batteries

EXPERTPOWER

ExpertPower EXP1270 ? ExpertPower EXP1272

VISION

Vision CP1270 ? Vision WP7-12 ? Vision WP7.0-12 ? Vision WP7.2-12 ? Vision WP7.5-12 ? Vision WP8-12

OTHER COMMON CROSS-REFERENCE NUMBERS

12-621 ? 182391 ? 530401574 ? 530402815 ? 5390 ? 91-189 ? BP7-12 ? BW1270 ? BW1280 ? CFM12V6.5 ? CP1270F1 ? CPSBK3 ? CY0112 ? D5743 ? DG12-7 ? DJW12-7.0 ? DJW12-7.2 ? DMU12-7.5 ? GP1270 ? GP1272 ? GT026P4 ? HE12V7.7 ? HR9-12 ? HX12-8 ? JC1260 ? JC1265 ? LP12-7 T1 ? LP12-7.2 T1 ? MX12070 ? NP12-7Ah ? NP7-12/A ? Opti RBAT-6 ? PC1270 ? PE12V6.5 ? PE12V7.2F1 ? PE12V7F1 ? PK1280F1 ? PK12V7.2 ? PK12V7F1 ? PXL12072 ? SH1228W ? SL1075 ? SLA-7-12 ? SLA0124 ? SLA1075 ? SP12-7.5-T1 ? TP12-7 ? TP12-7.5 ? UB-1280-F1 ? UB1270 ? UB1280 ? VS375C ? WKA12-7.5F ? WP6.5-12 ? WP7-12 ? WP7.0-12 ? WP7.2-12 ? WP7.5-12 ? WP8-12 ? WPX6.0-12 ? WPX6.5-12 ? WPX7.0-12 ? WPX7.6-12

EXAMPLES OF EQUIPMENT & MODELS USING THIS BATTERY SIZE

12V 7Ah SLA batteries are used across a very large number of products worldwide. Examples of equipment families and models that may use this battery class include:

  • APC UPS systems using a 12V 7Ah F1 battery
  • APC Back-UPS / ES series where the original battery specifications match
  • Razor E200 electric scooter applications where the original battery is 12V 7Ah SLA
  • Razor E300 electric scooter applications where the original battery is 12V 7Ah SLA
  • GTO gate opener systems using a compatible 12V 7Ah SLA battery
  • ADT security and alarm equipment using compatible 12V 7Ah batteries
  • Fire alarm panels using 12V 7Ah SLA batteries
  • CCTV backup systems using 12V 7Ah SLA batteries
  • Emergency lighting units using 12V 7Ah SLA batteries
  • Small UPS systems using 12V 7Ah batteries
  • Access control systems using 12V 7Ah SLA batteries
  • Automatic gate systems using compatible 12V 7Ah batteries
  • Stair lift backup systems where a 12V 7Ah battery is specified
  • Bait boats using compatible 12V 7Ah batteries
  • Ride-on children's vehicles using compatible 12V 7Ah batteries
  • Small lawn and garden equipment using compatible 12V 7Ah batteries
  • Portable 12V pumps and inflators
  • Portable lighting and emergency equipment
  • Medical and electronic equipment requiring a compatible 12V 7Ah SLA battery
IMPORTANT COMPATIBILITY INFORMATION

Equipment model numbers can have different battery specifications depending on the country, production year and version of the equipment. Always compare your existing battery before ordering. Check voltage, Ah capacity, physical dimensions, terminal type/polarity and charging requirements. Do not rely on the equipment model number alone.

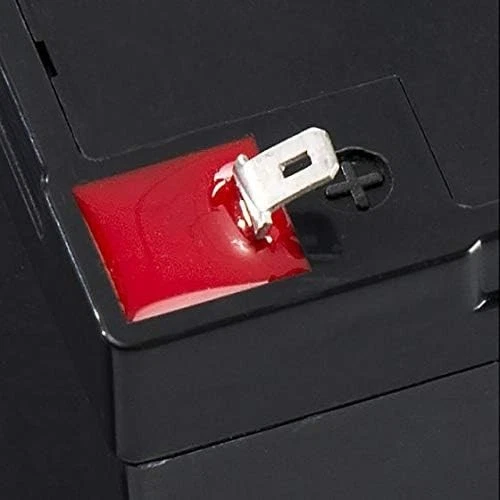

Ultramax NP7-12 F1 Battery Terminal
F1 / 4.75mm FAST-ON TERMINALS

The ULTRAMAX NP7-12 uses standard F1 / 4.75mm Fast-On (spade) terminals, making it suitable for many applications using push-on battery connectors.

IMPORTANT: Some batteries with the same 12V 7Ah capacity use larger F2 / 6.35mm terminals. Please check your existing battery before ordering. If your equipment requires F2 terminals, this F1 version may not be a direct plug-and-play replacement.

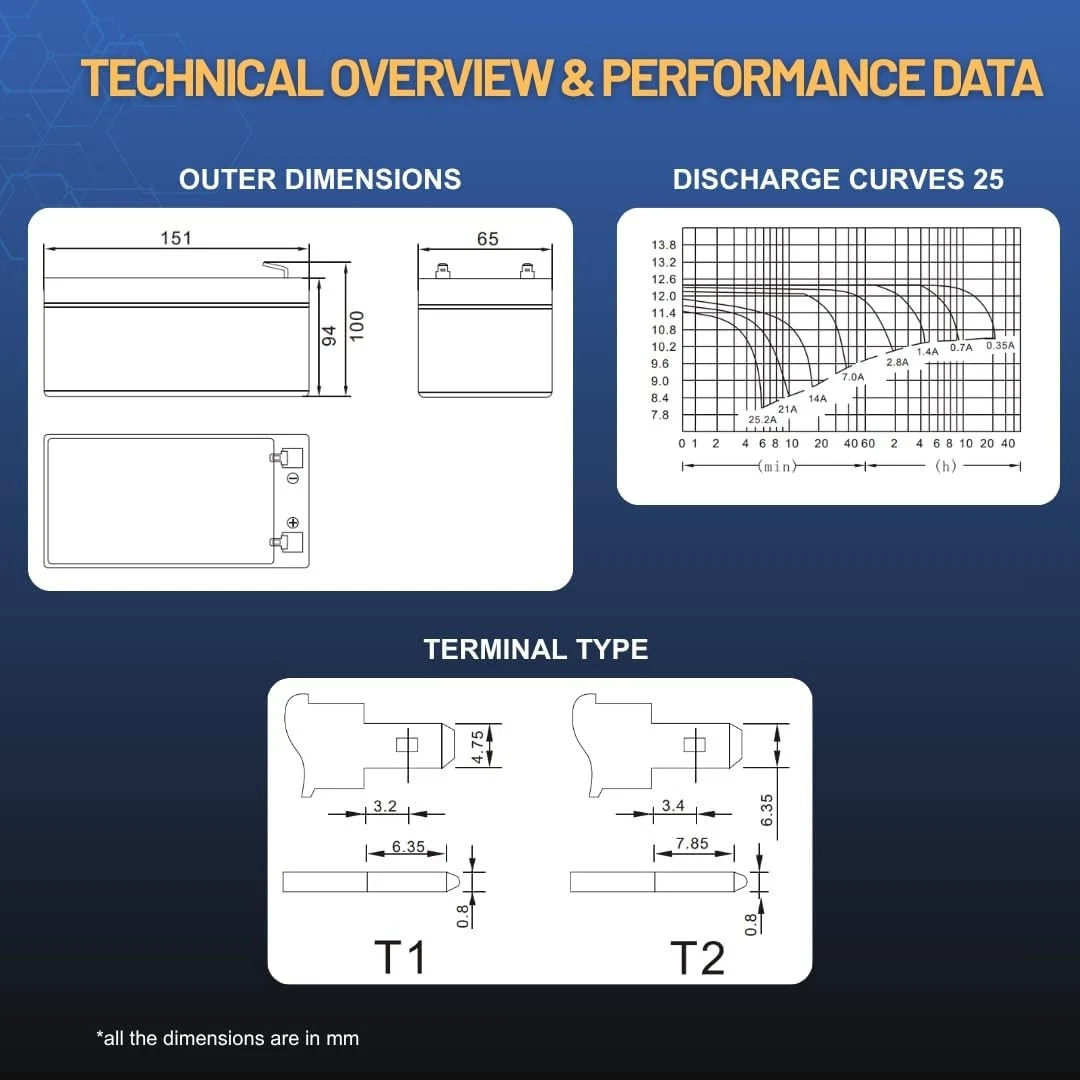

Ultramax NP7-12 Technical Specifications and Terminal Diagram
ADVANTAGES OF ULTRAMAX OVER OTHER 12V 7Ah BATTERIES
  1. Excellent value for money ? ULTRAMAX provides a cost-effective alternative to many higher-priced branded SLA batteries.
  2. Widely compatible size ? the 151mm x 65mm footprint is a very common 12V 7Ah SLA battery format.
  3. Maintenance-free AGM construction ? no routine electrolyte topping-up is required.
  4. Excellent replacement choice ? suitable for replacing many common 12V SLA battery brands when specifications match.
  5. Reliable standby power ? well suited to UPS, alarm, emergency lighting, security and backup applications.
  6. Rechargeable ? designed to be used with compatible charging systems.
  7. Sealed design ? reduces the risk of electrolyte spillage during normal use.
  8. 12-month warranty ? additional peace of mind when purchasing.
  9. Established battery brand ? ULTRAMAX has a long history supplying rechargeable batteries for consumer, commercial and industrial applications.
Ultramax NP7-12 Battery Packaging
WHAT YOU WILL RECEIVE
  • 1 x ULTRAMAX NP7-12 12V 7Ah Sealed Lead Acid AGM Battery
  • F1 / 4.75mm Fast-On terminals
  • New battery
  • 12-month warranty
IMPORTANT BEFORE ORDERING

Please compare your existing battery with the ULTRAMAX NP7-12 before purchasing.

  • Voltage must be compatible ? 12V
  • Check the required capacity ? 7Ah
  • Check the physical size ? 151mm x 65mm x approximately 94mm
  • Check the terminal type ? F1 / 4.75mm
  • Check terminal polarity and cable arrangement
  • Check that your equipment's charger is suitable for a 12V sealed lead acid/AGM battery
  • Check that the battery compartment provides sufficient clearance
PLEASE NOTE: Battery capacity and physical compatibility can vary between different versions of the same equipment model. The customer is responsible for confirming compatibility before purchase.
BATTERY SAFETY & CARE
  • Use only with equipment and chargers designed for compatible 12V sealed lead acid batteries.
  • Do not short-circuit the terminals.
  • Do not open, crush or disassemble the battery.
  • Keep away from children.
  • Do not dispose of batteries with normal household waste.
  • Recycle the battery responsibly at the end of its service life.
  • Follow the equipment manufacturer's instructions for charging and installation.
ULTRAMAX NP7-12 ? 12V 7Ah AGM SEALED LEAD ACID BATTERY

A dependable and cost-effective replacement battery for a wide range of UPS, alarms, security systems, emergency lighting, mobility equipment, garden equipment, leisure equipment, portable power and general 12V applications.

CHECK YOUR EXISTING BATTERY SIZE, TERMINALS AND SPECIFICATION BEFORE ORDERING.
