Features:
1. Embedded Linux System, stable and effective.
2. Friendly Web Control UI, default IP is 192.168.1.168, user name and password both are admin.
3. Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.
4. Support multi-stream,one main stream and three sub-stream, up max to 4 stream at the same time.you can push multi-platform in the meantime.
5. Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.

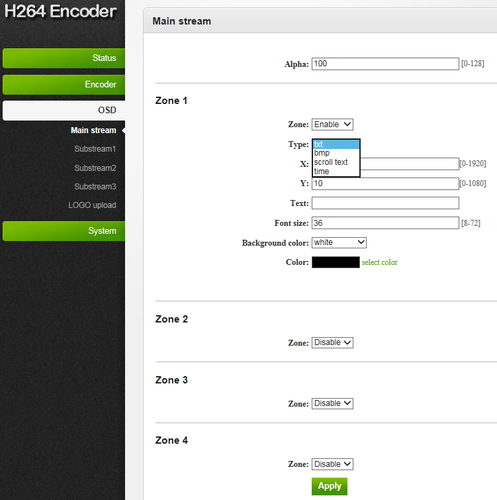

6. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
7. Output Stream bitrate adjustable.
8. Support firmware upgrade.
9. IP address can be set by yourself.
10. Support remote control via router port forward.
Usages:
Usages:
You can play the video directly using some software tools like vlc or potplayer etc, for example,
1) http://192.168.1.168/0.ts
2) http://192.168.1.168/0.hls
3) http://192.168.1.168/0.m3u8
4) http://192.168.1.168/0.flv
5) rtsp://192.168.1.168/0
6) rtmp://192.168.1.168/live/0
7) udp://@238.0.0.1:1234
also,set the RTMP push address from the third live webcasting platform, such as YouTube, Ustream, Twitter, Sopplus, etc.
Application
1. IPTV
2. Online Live Broadcast, such as YouTube, Ustream, Twitter, Sopplus, etc.
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
Specifications
| Video | |
Input | 1 * HDMI |
Supports input HDMI Resolution | Max support 1920x1080P@60Hz |
Output Stream Resolution | Max support 1920x1080P@60Hz |
Data Rate | 0.1Mbps~32Mbps |
Rate Control | CBR / VBR |
GOP Structure | IBBP |
Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Audio | |
Encoding | AAC |
Sampling rate | Auto |
Bit-rate | 48K/64K/96K/128K/160K/192K |
Sampling precision | 24 bit |
Data Rate | 64Kb/s~384Kb/s |
| System | |
Ethernet | 100Base-T Ethernet interface |
Protocol | RTMP, RTSP, UDP,HTTP,HLS, FLV ONVIF |
User Interface | WEB default IP - http://192.168.1.168/indexE.html |
| Others | |
Dimension (W* L*H) | 105*78*30mm |
Weight | 0.3kg |
Power | 12V/DC |
Consumption | 5W |
Shipments
The item will be sent from China:
To the Unite States via DHL or EMS with about 4-7 days.
To the other area, about 7-20 days, according to the actual destination and the responding shipping service provider.
To the Unite States via DHL or EMS with about 4-7 days.
To the other area, about 7-20 days, according to the actual destination and the responding shipping service provider.
