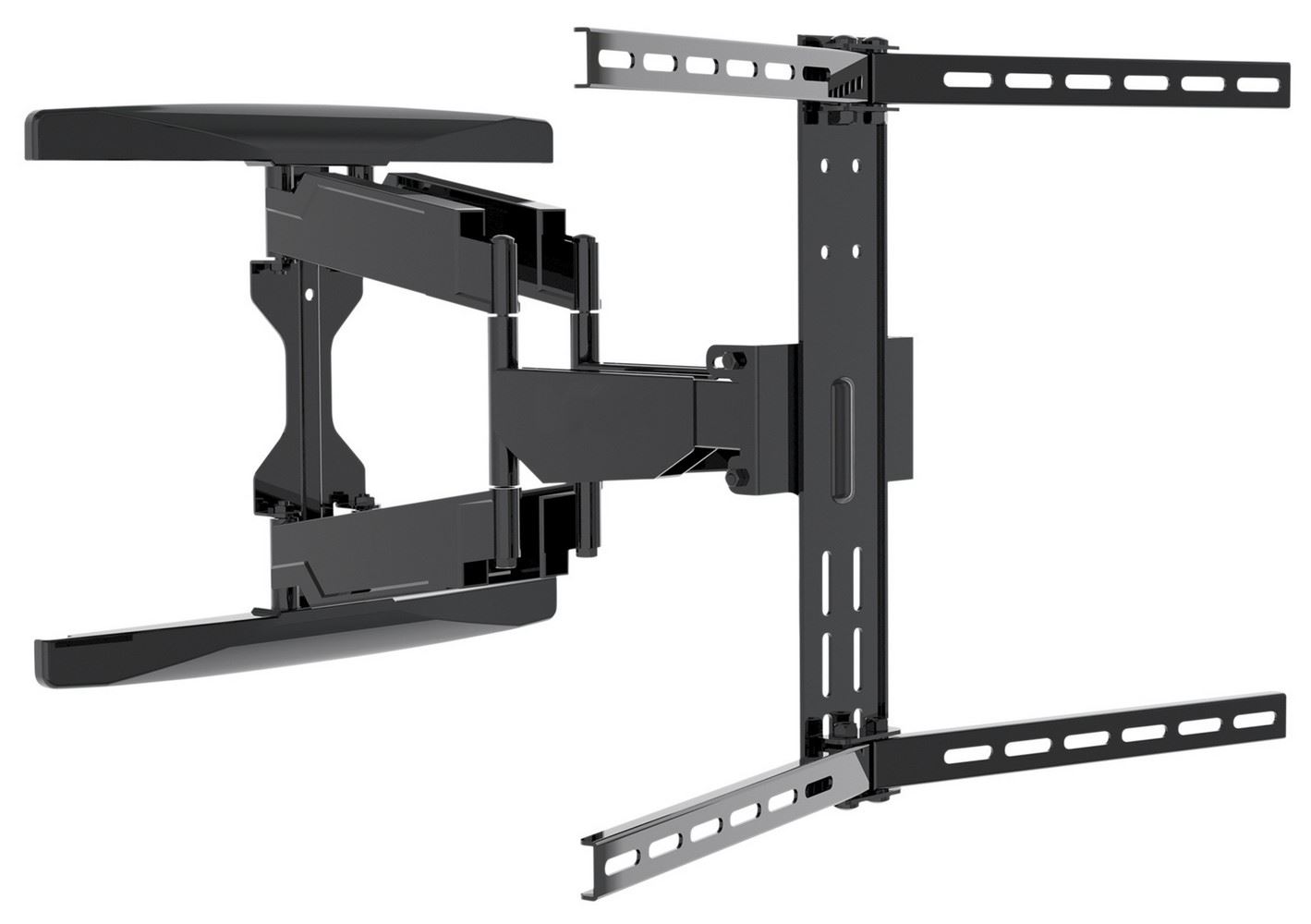

Dual Pivot Tilt & Swivel Curved TV Mounting Bracket 37-80"
This tilt and swivel bracket is designed specifically for curved TVs making it easy to achieve the optimum viewing pleasure from your TV. The external bracket can be used in two ways, if it is flat a standard flat panel tv can be fitted. However, if the bracket is positioned in an inverted position, it can comfortably house a curved TV. With its Dual Pivot Tilt and Swivel function, you can use the wall brackets to install a TV at a safe height for a fine viewing experience from a range of angles. Designed with easy cable management and a decorative wall panel cap for a more aesthetically pleasing finish

Key Features
Dual Pivot Tilt & Swivel Curved TV Mounting Bracket 37-80"

Compatible with most curved TVs

Ideal for domestic or commercial use

Designed with easy cable management in mind

Swivel of up to 180 degrees

Comes with decorative panel cap

Product Features

Sub Code B0182J1SVU

Depth (mm) 379

Display Footprint (mm) 80x605x465

Gross Weight (Packaged) (kg) 7.79

Gross weight outer carton (kg) 15.9

Height (mm) 40

Inner box (HxWxD mm) N/A

Inner box quantity N/A

Item priced per 1

Net weight (kg) 6.79

Outer box (HxWxD mm) 500x625x170

Outer box quantity 2

Packaged dimensions (HxWxD mm) 80x605x465

Packaging Picture Box

Paper weight (kg) 0.95

Plastic weight (kg) 0.05

Product Dimensions (mm) 40x520x379

Product EAN 5021196759881

Supplier Ref. WMS36-64AT

Transport dimensions (mm) 80x605x465

Width (mm) 520

Wood weight N/A

Colour Black

Max Load (kg) 60

336 Screen Size 80inch

587 Screen Size (mm) 80inch

563 Tilt Adjustment (Deg.) -3 to 12 degrees

564 Turn Adjustment (Deg.) 60 degrees

566 VESA Size 600x400

Additional Info: Not Applicable

Additional Info: Not Applicabale

Height (mm): 40

Width (mm): 520

Depth (mm): 379

Net Weight (g): 6790

Gross Weight (g): 7790

Packaged dimensions (HxWxD mm): 80x605x465

Gross Weight (Packaged) (g): 7790
