DC 6.5~100V AC 80~260V 20-50-100A LCD Digital Display Volt Amp Power Watt Meter
50A 75mV Shunt Resistor
The fixed setpoint shunt is a suitable the attached external shunt for measuring DC current in 10kA less directly acting on the analog display instrument together with the use in order to expand the scope of the DC current measurement, or sequentially circuit can be regarded as the current sampling with the standard resistors, a sampling voltage is measured with a current can be regarded as an analog signal.
Specifications:
1.Accuracy level :2-4000A, 0.5 level；5000-10000A， 1 level.
2.Environmental conditions: -40 ~ +60 ℃, the relative temperature ≤ 95% (35 ° C)
3.Overload performance: 120% of rated current, 2 hours
4.Voltage drop: 75mV
5.Load heat: Temperature rise changes stabilized, rated current of 50A does not exceed 80 ° C; rated current of 50A does not exceed 120 ° C.
Weight: 72g
Dimension (L x W x H): (Approx.) 12cm x 2.6cm x 1.8cm
Pakeage Included:
1PC*50A 75mV DC Shunt Resistor
100A 75mV Shunt Resistor
1. Product Name DC Shunt.
2. Model FL-2.
3. Material Metal, Plastic.
4. Color Black, Silver Tone.
5. Accuracy 0.5 Class.
6. Current 100A.
7. Voltage Drop 75mV.
8. Dimension 10.8 x 2.3 x 1cm.
Package Included:1PC*100A 75mV DC Shunt Resistor

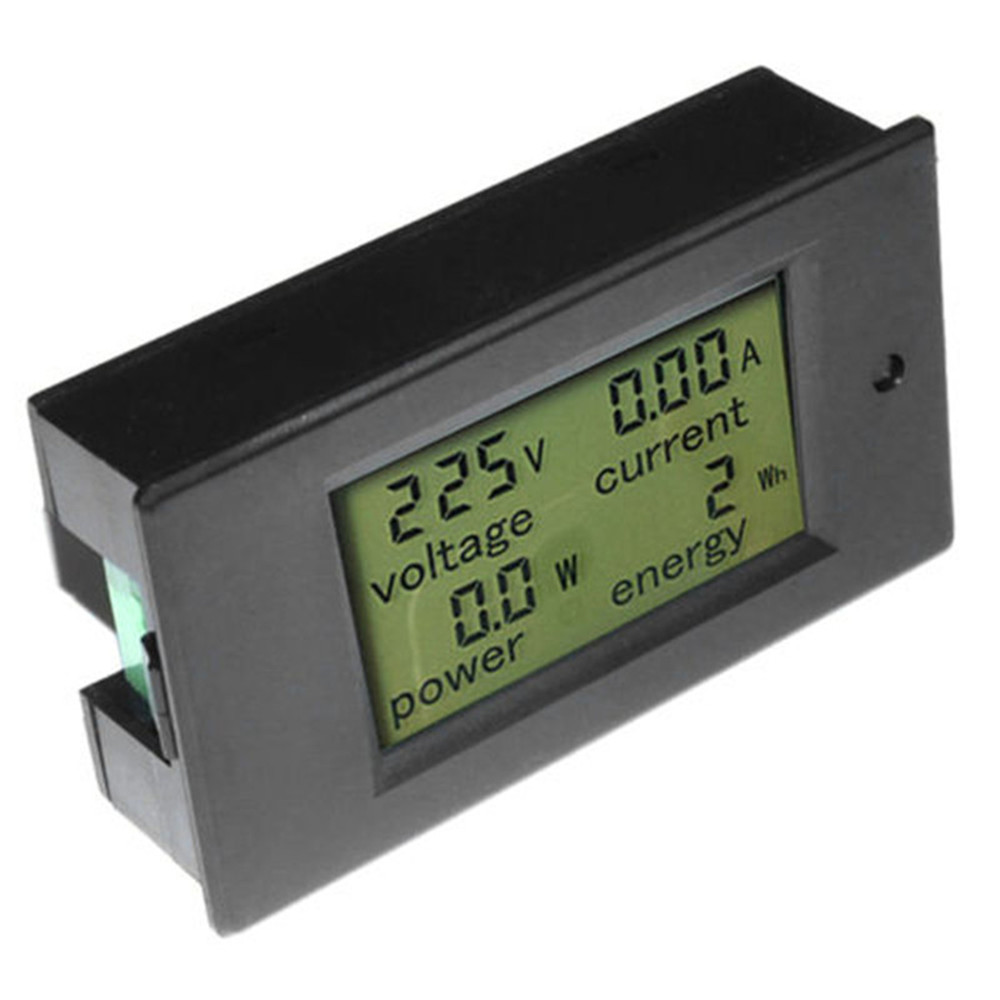

0-20A Meter(built-in shunt)
Brand new & high quality!
Dual measurement of AC voltage, AC current(It can't be used for measuring the AC power converted from a DC power with an inverter)
Voltage Measuring Range: AC 80 ~ 260V
Current Measuring Range: AC 0 ~ 20A
Active Power Measuring Range: 0 ~ 4.5kW
The meter can only measure the active power(real power). It doesn't show Apparent power which includes reactive power and active power. For more information about the difference, please read this: LINK
Energy Measuring Range: 0 ~ 9999kWh
Operating Temperature: -10 ºC ~65 ºC
Operating Humidity: 35~85% RH
Dimensions:9cm * 5cm * 2.45cm/3.54" * 1.97" * 0.96"
Package Included:1PC* LCD Panel AC Power Meter
0-50A Meter
Electricalcombo meter measurementfunction(voltage, current,power, watt hour)
Overloadalarm function (over power limit the backlight andvoltagevalue blinking)
Voltagealarmpreset function(canset upvoltagealarm value)
Watt Hour valuesclear function
Power-offdata save function
Large-screenLCDdisplay(displayvoltage, current, power, watt hour at the same time)
Blue LED BacklightON / OFFfunction.
Specification:
OperatingVoltage: DC 6.5~100V
Voltage Measuring Range: DC 6.5~100V (display format: 6.50~99.99V)
Current Measuring Range:0~50A
Rated Power: 0~2kW (display format: <1kW 0.0~999.9W , >1kW 1000~4500W)
Energy Measuring Range : 0~9999KWh (display format: <10kWh 0~9999Wh , >10kWh 10~9999kWh)
Operating frequency: 45~65 hz
Measurement accuracy: 1 class
Wire Required: wiring sequence can’t be wrong
Dimensions:89.6mm(W) x 49.6mm(H) x 24.4mm(D)
Cutout Dimensions: 84.6mm(W) x 44.6mm(H)
Package Included:1PC*50A DC Digital LCD Power Panel Meter Monitor Power Energy Voltmeter Ammeter

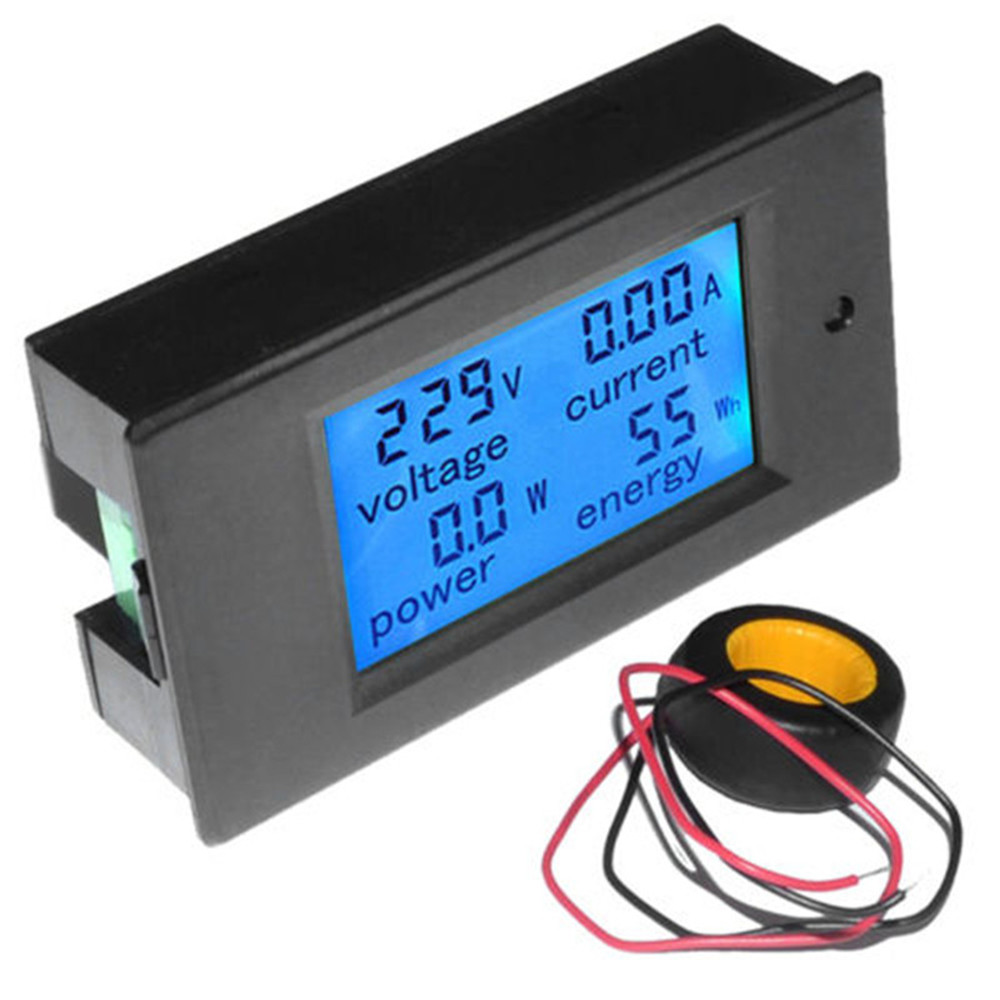

0-100A Meter
Overload alarm function (over power alarm threshold, backlight and power flashing to alarm)
The reset function of Energy key
Store data when Power-off
Large-screen LCD display (display voltage, current, active power, Energy at the same time)
Backlight function.
Specifications:
Display format:
1.Power: test range: 0-22kW
Within 1kW, the display format is 0.0-999.9W;
Within 1kW-10kW, the display format is1000-9999W;
10kW and above, the display format is 0.1-22.0kW
2.Energy: test range: 0-9999kWh
Within 10kWh, the display format is 0-9999Wh
10kW and above, the display format is 10-9999kWh
3.Voltage: test range: c80-260V
Display format: 80-260V
4.Current: test range: 0-100A
Display format: 0.00-99.99A
Color: Black
Size: Approx. 90*50*25mm
Net Weight: 94g
Package Included:
1PC*Digital LCD AC Voltmeter / Ammeter
1PC*Current Transformer
0-50A Voltmeter Meter+Shunt
Package included:
1PC*0-50A Meter
1PC*50A 75mV Shunt Resistor
0-100A Voltmeter Meter+Shunt
Package included:
1PC*0-100A Meter
1PC*100A 75mV Shunt Resistor
