Connecting Rods Rod For BMW 328i 528i E36 E46 M52B28 135mm Pleuel Bielle 800HP

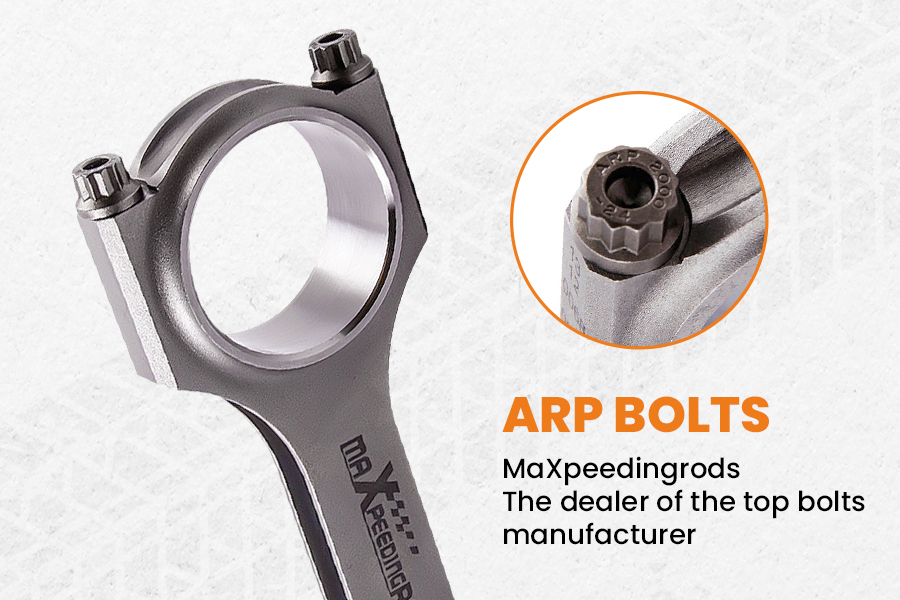

ARP Bolts

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

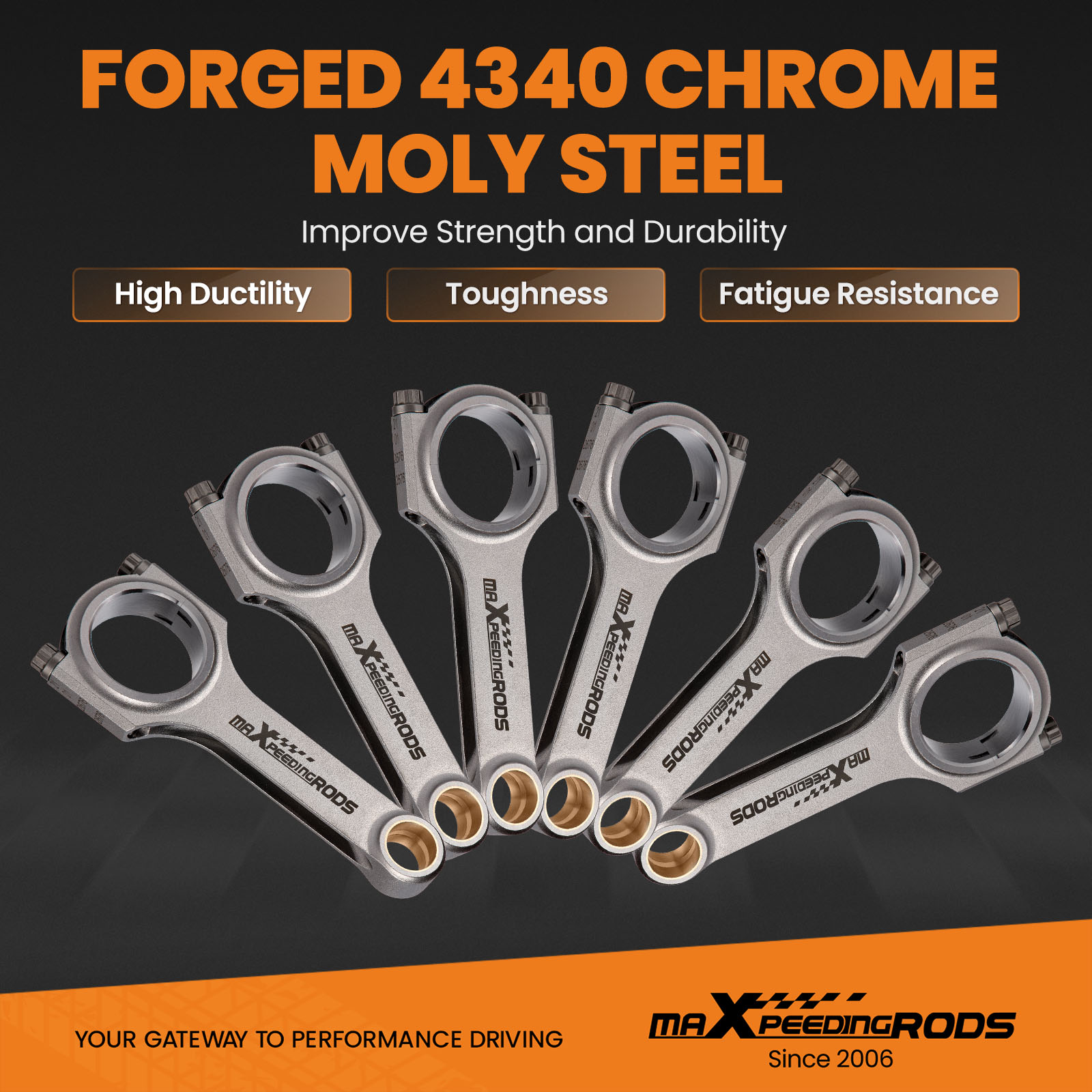

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

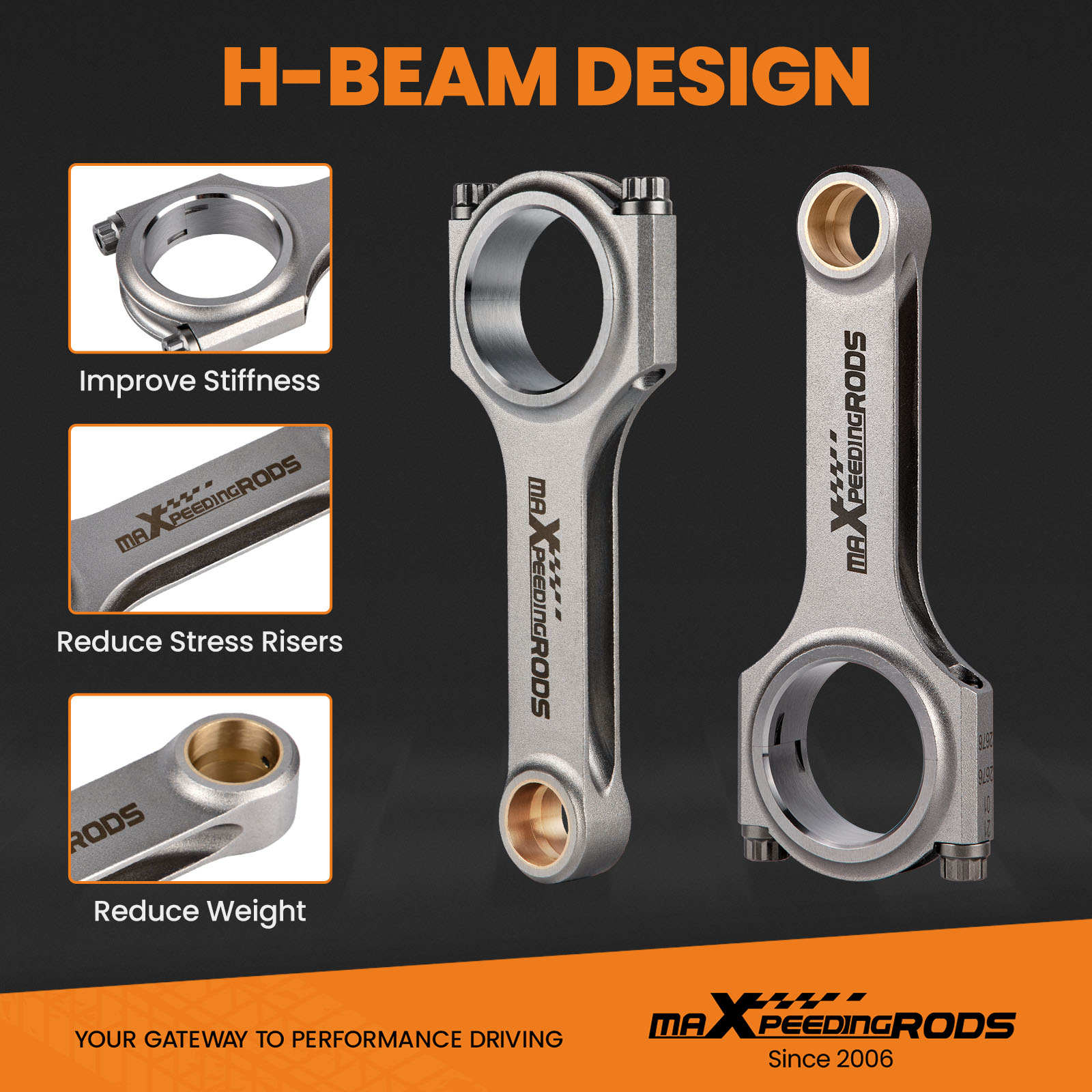

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

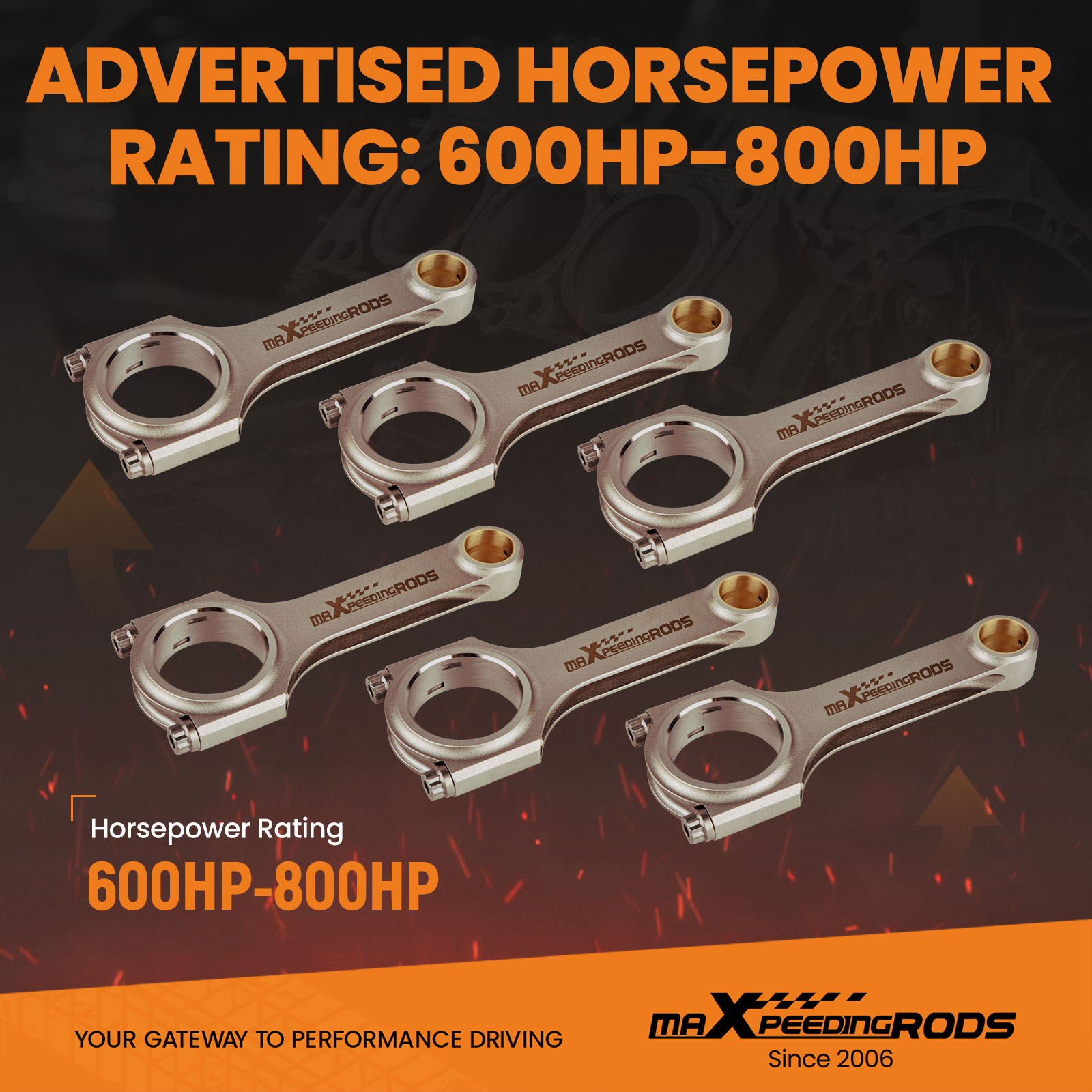

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

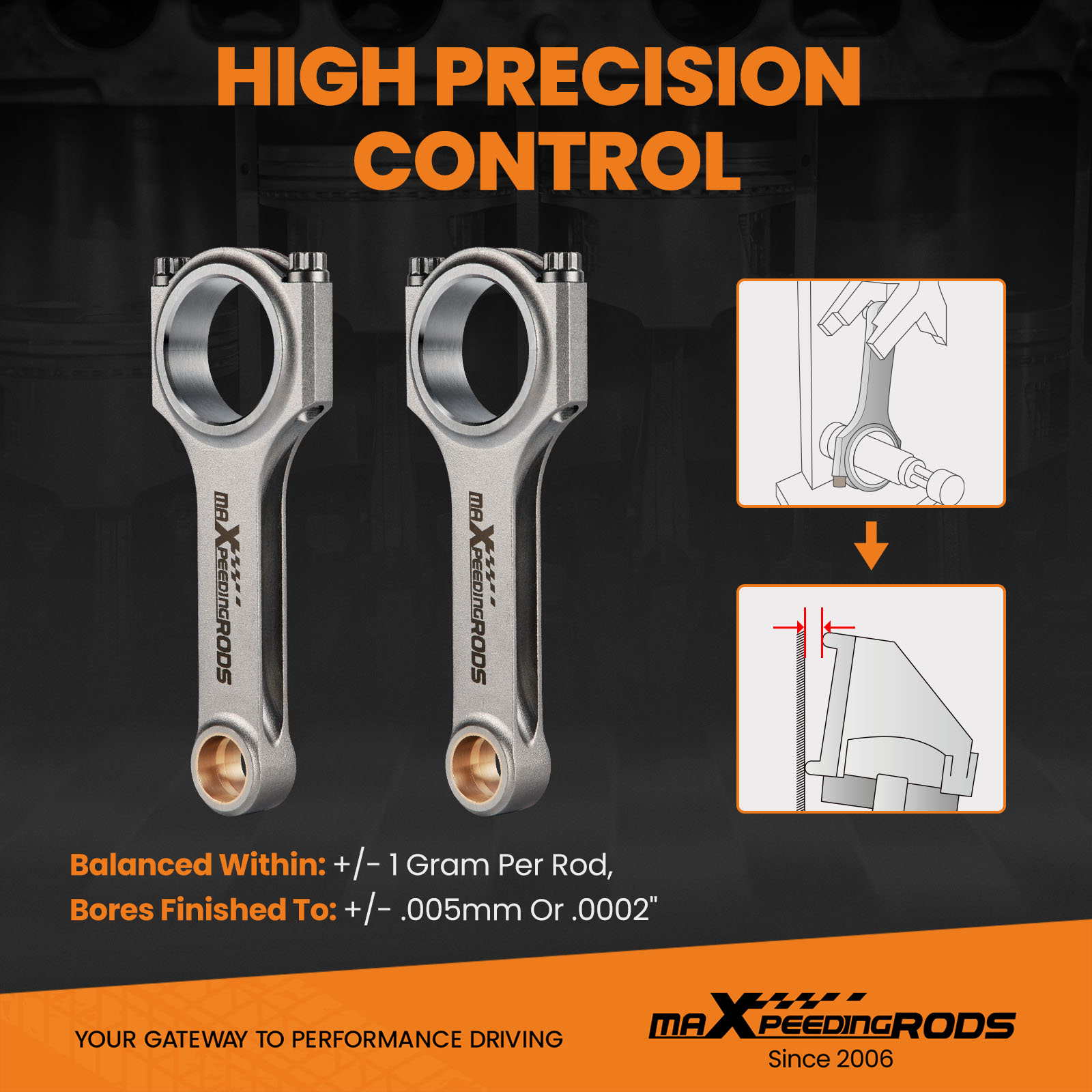

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

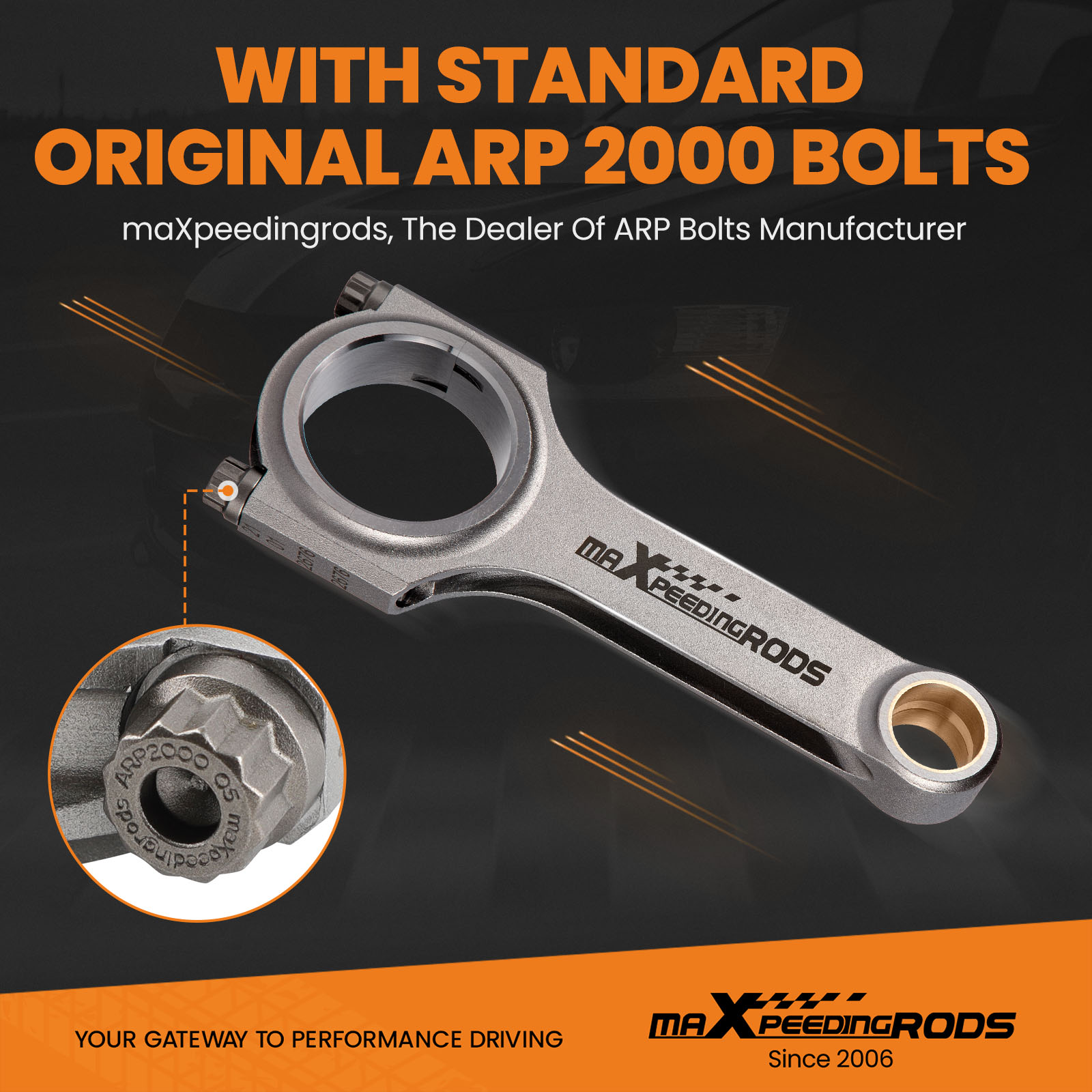

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

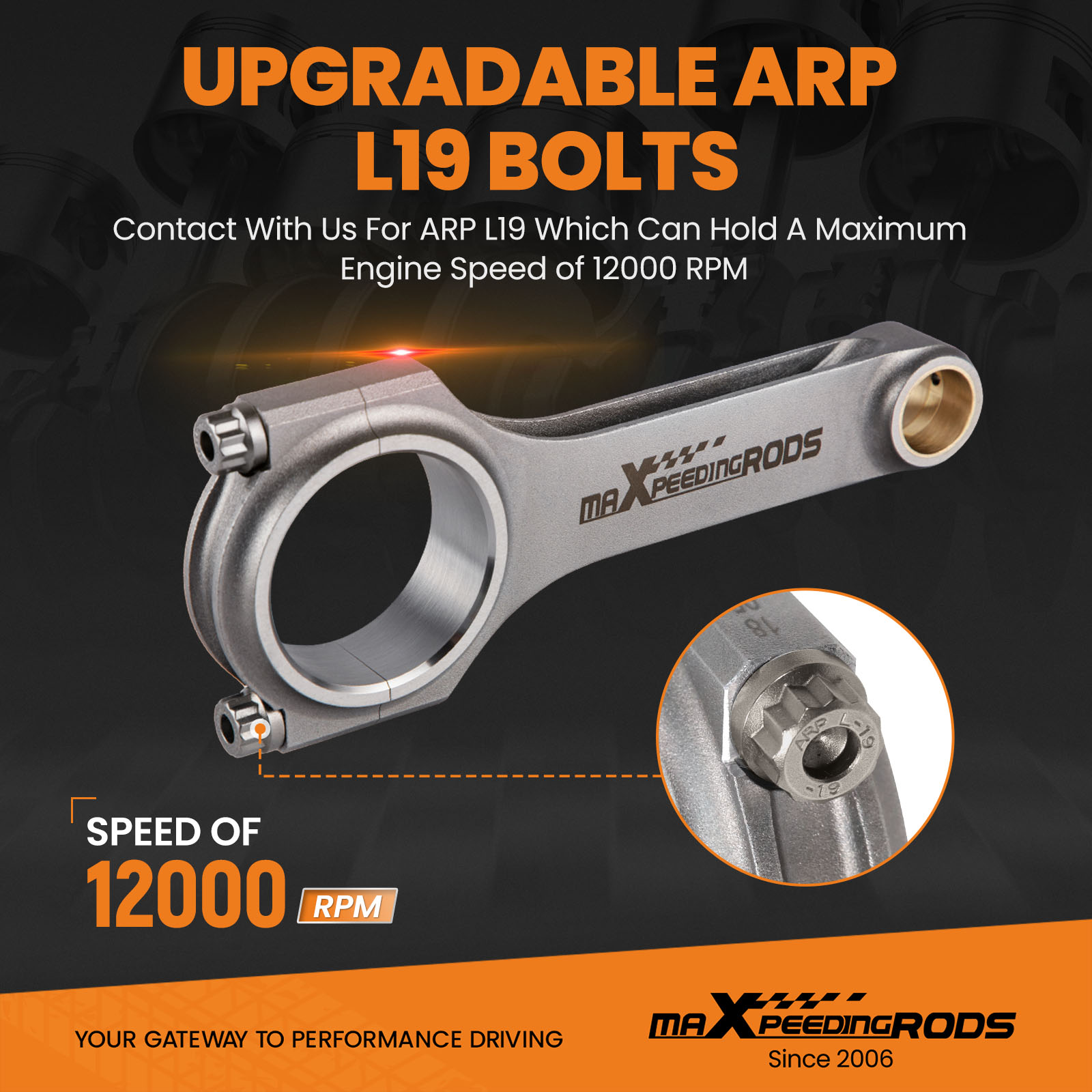

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.

Application

For BMW	328i / 528i (E36 E46 E12)
For BMW Engine	M50B25 M52B28 M54B30

For BMW Engine	S52B30 S52B32
Pin Type	Floating Pin Piston

Dimension

Connecting Rod Length Center to Center	135.00mm/5.315in
Approximate Connecting Rod Weight	566g
Big End Bore Diameter	48.00mm/1.890in
Pin End Bore Diameter	22.00mm/0.866in
Big End Width	21.90mm/0.862in
Small End Width	21.90mm/0.862in

Specification

Beam Style: H-beam Street/Strip

Material: 4340 Chromoly Steel

Finish: Shot-peened

Wrist Pin Style: Floating

Clearanced for Stroker: Yes

Cap Retention Style: Through-bolt

Connecting Rod Bolt Brand: ARP

Connecting Rod Bolt Diameter: 3/8"

Connecting Rod Bolt Material: Alloy Steel

Fastener Yield Strength (psi): 220,000 psi (ARP 2000)

Upgrade Fasteners: ARP L19 (260,000 psi) optional

Connecting Rod Bolt Head Style: 12-point

CNC Machined: High Precision

Rod Cap Alignment: Precision dowels

Bore Tolerance: ±0.005 mm

Balancing: ±1 gram per rod

Weight Matched Set: Yes

Remanufactured: No

Testing: Magnafluxed, X-rayed, Ultrasonically tested

Heat Treated: Yes

Performance Ratings

Advertised Horsepower Rating: 200HP/piece

Advertised RPM Rating: 9,000rpm

Packaging

Quantity: Sold as a set of 6

Package Size: 28CM*20CM*14CM

	See Details	See Details
Beam Type	I-Beam	H-Beam
Material	Forged 4340 Chrome Moly Steel	Titanizing Forged 4340 Chrome Moly Steel
Application	For BMW 328i 528i E36 E46 M52B28	For BMW 328i 528i E36 E46 M52B28
C-C Length	135mm / 5.315"	135mm / 5.315"
Big end diameter	48mm / 1.890"	48mm / 1.890"
Small end diameter	22mm / 0.866"	22mm / 0.866"
Big end width	21.9mm / 0.862"	21.9mm / 0.862"
Small end width	21.9mm / 0.862"	21.9mm / 0.862"
