T3 Turbine Housings for GT30 GTX30 Series Turbos

PRODUCT FEATURES

•direct-bolt-on for garrett gt/x30 t3 turbos(gt/x3071r gt/x3076r)
•cast from high quality cast iron
•three a/r options and two outlet styles available
•clamps and bolts included for easy installation

TECHNICAL DATA

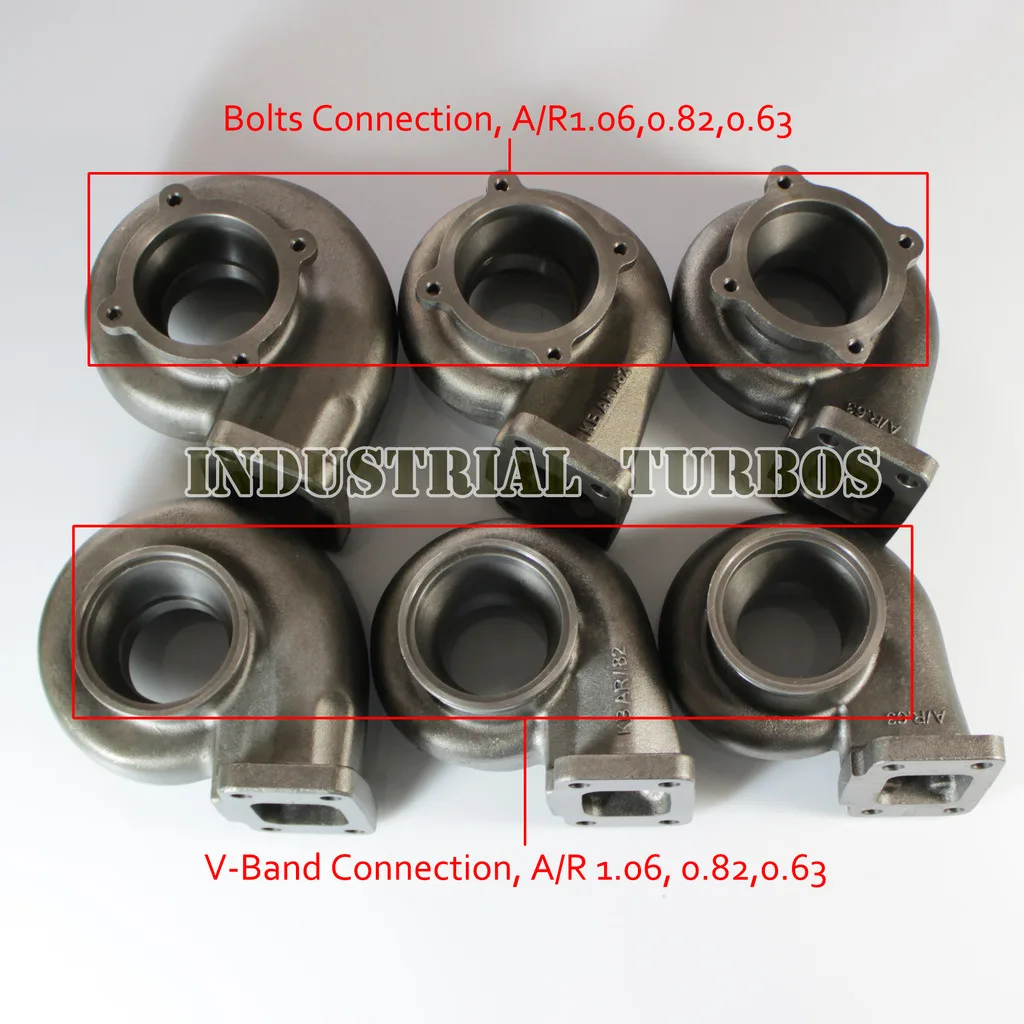

Turbine housing options
Ref. Part #	Inlet type	A/R ratio	Outlet style	status
740902-1	standard T3	1.06	3" 4-bolt	In-stock(2pcs)
740902-2	standard T3	0.82	3" 4-bolt	In-stock
740902-3	standard T3	0.63	3" 4-bolt	In-stock
740902-7	standard T3	1.06	3" V-Band	In-stock
740902-8	standard T3	0.82	3" V-Band	In-stock
740902-9	standard T3	0.63	3" V-Band	In-stock

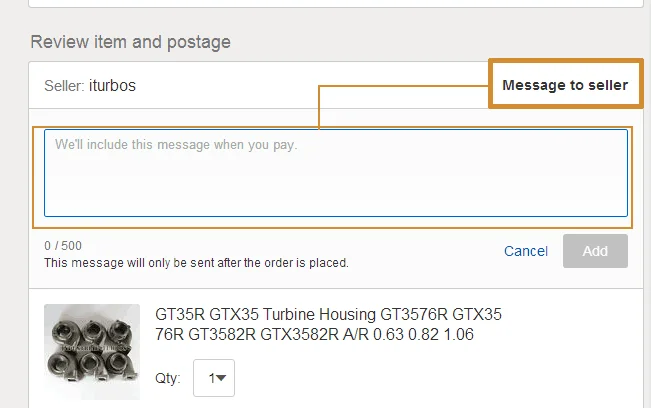

Please tell us which housing you would like to purchase by "message to seller" while checking out.

PACKAGE CONTENT

•1*TURBINE HOUSING
•1*INSTALLATION KIT

FAQ

1. if my old garrett GT30 turbo has a t4 turbine housing, can i use this housing?

Generally No, most of the GT30 turbos with T4 turbine housing have a T series bearing housing, which will not fit on t3 turbine housing.

2. can i use this turbine housing on other brand's GT30 turbo?

It depends on whether they follow GARRETT specs(bearing housing, turbine wheel&shaft etc.), please consult your turbo's seller or manufacturer for the information.

3. can i use this turbine housing on garrett GT/X30 genⅡ turbos?

No, it will not work on GT/X30 genⅡ turbos.

4. what is the matching turbine wheel for this housing?

The turbine wheel&shaft should exactly follow GARRETT GT30 specs, for example, the inducer is 60mm, the exducer is 55mm.

5. which a/r ratio should i choose for my application?

Turbine housing A/R ratio has a great influence on turbo performance. Smaller A/R housing has a better low engine RPM performance, spool up faster but has higher back pressure at high engine RPM which will reduce the peak horsepower. Larger A/R housing has a better high engine RPM performance, lower back pressure provides more horsepower at high engine RPM but slower the boost rise.

POLICY

SHIPPING

Handling Time:
Same day shipping on all orders paid By 10:00 AM AEDT, no shipment on Weekends.

Item Location:
Item(s) will be shipped from our warehouse in Sydney by AU POST or Toll IPEC.

Faster Shipping:
Buyers can choose faster shipping method(IF Available) while checking out.

International shipping:
Item(s) might be sent from our oversea warehouse via UPS, DHL, FedEx etc. at our discretion, buyers are responsible for the import duty (If Any) upon delivery.

RETURNS

We offer the eBay 30 days Money Back return policy if the item is never installed and kept in the original packaging.

Please read the following terms carefully before purchasing.

Item(s) Conditions:
Item(s) must be in Brand New condition and kept in the original package with all the accessories.

Return Postage:
Buyer is responsible for the cost to return the unwanted item(s), buyers should advise us the return tracking number timely.

Return Address:
Please contact us to get return address and Return Merchandise Authorization (RMA) number before you ship the item(s) back, DO NOT return the item(s) without our authorization.

Refund:
The refund would be processed after the item is received and inspected, contact us while tracking info shows the parcel is delivered will make the process quicker.

WARRANTY

All Industrial Turbos(iTurbos) brand complete turbos, CHRAs, supercores have a 1-year warranty, the warranty covers any damages done during shipping. Special circumstances(IF Any) will be stated clearly on the listing page.

No step by step instruction is included.
Professional installation is required, if damage is done by improper installation or improper care of the buyer's vehicle, the warranty is avoid.

PAYMENT

We accept PayPal only. Credit card or e-Check via PayPal will be accepted.

If you have any questions or concerns, please feel free to contact us by sending eBay message, we will reply your message ASAP.

Please kindly notice that messages during the weekend will be delayed, please have some patience.
