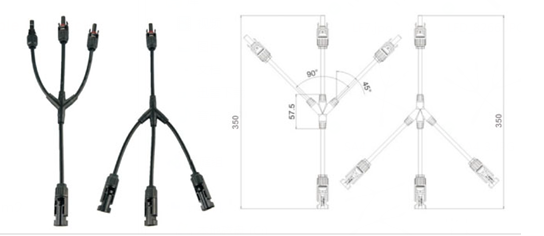

Solar Panel Connector Adaptor Cable Y Branch Connector 3 Y Solar Cable Connector
Package include:
2 x Solar Y Branch Connector Cables
Specification:
Model : Y
Rated voltage: TUV1000 V DC /UL 600V DC
Current : 20A~30A
Wire gauge：2.5mm²~6mm² / 14AWG~10AWG
Terminal specification ：φ4.0mm
High voltage ： TUV6000 V AC(1 min) /UL 2200V DC(1 min)
Safety: II
Connector conductor material: Copper,Silver Plated
Contact resistance: ≤5mΩ
Material: PPO
Degree of protection: IP68(IEC 60529)
Temperature rating: -40 degree ~ +85 degree
Flame Retardant Grade: UL94V-O
