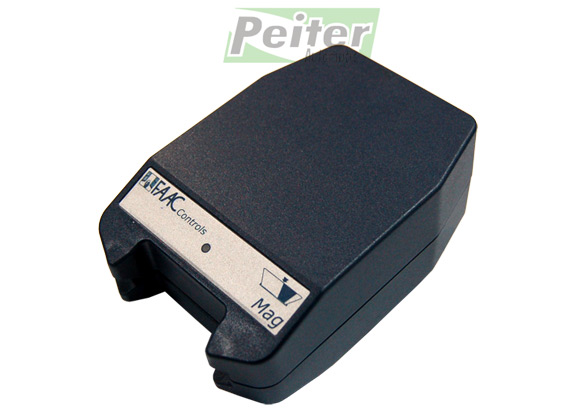

Faac MAG insertion type magnetic card reader
(catalogue number 4031107)

The MAG magnetic card reader can be used in access control systems for both pedestrians and vehicles.

Technical features:

• Container: in ABS
• Power supply voltage: 12 Vdc (from the control board)
• Type of magnetic reader: insertion
• Format: ISO STANDARD track 2
• Reading of magnetic strip: 60% of track
• Electrical connections: multipolar cable 5 x 0,5
• Max. distance between reader and control unit: 100 m
• Operating temperature: -10°C to +55°C
• Installation: wall mounted or column mounted
• Heater: thermostat-controlled
• LED indications: 1 two-colour multifunction LED
• Buzzer: can be turned off
• Shutters: mechanical
• Dimensions: 88x126,5x48 mm (LxHxD)
• Use: vehicle or pedestrian access control systems, indoors and outdoors



For the purchased goods we give warranty
24
months



  Goods will be sent by post no later then the next day after payment.

Transfer to



We are distributors of companies: FAAC, NICE, CAME, BENINCA, KEY, LIFE, GENIUS, KING GATES, BFT, V2, SAIMATIC, FADINI, HORMANN, SOMMER, NORMSTAHL, PROTECO. On request our client we can send down the machines also other companies, even the most unusual, and those which are used in industry.

A FULL VAT RECEIPT FOR ALL PURCHASES WILL BE PROVIDED
