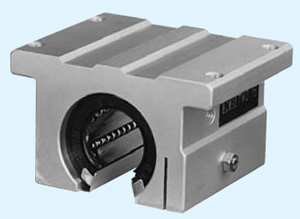

TWD Type:Slide Unit
Pillow Block
Made in Japan:NB Linear Systems
Nippon Bearing Linear Systems


part number nom.
Shaft diameter

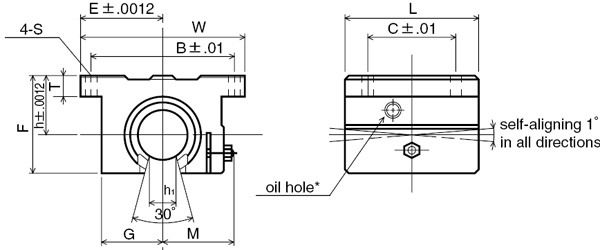

inch 		major dimensions mounting dimensions basic load rating mass
lbs.
h
inch 		E
inch 		W
inch 		L
inch 		F
inch 		T
inch 		G
inch 		M
inch 		h1
inch 		B
inch 		C
inch 		S
inch 		dynamic
C
lbf 		static
Co
lbf
TWD12UU 3/4 .9370 1.3750 2.750 1.875 1.535 .315 .937 1.12 .386 2.375 1.250 .188 470 590 .452



3/4" Slide Unit Pillow Block (Inch Series), inner diameter(bore)= 3/4" (.7500") inch dimensions with steel retainer, high accuracy grade linear bushings, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
