Feature:

1. 132 x 64 LCD display for clarity
2. Real-time clock provides accurate event logging
3. Multiple date and time scheduler
4. Set maintenance periods to maintain optimum engine performance
5. Ethernet communications (via DSE855 module), provides remote monitoring.

Specification:

Features:

• 132 x 64 LCD display for clarity
• Real-time clock provides accurate event logging
• Multiple date and time scheduler
• Set maintenance periods to maintain optimum engine performance
• Ethernet communications (via DSE855 module), provides remote monitoring
• IP65 protection rating (with gasket) offers increased resistance to water
• Compatible with intelligent building management systems ()
• Supports input and output expansion
• PLC function can meet complex application requirements.

Specification:

Model: DSE7320

Operating Voltage: 8-35VDC

Maximum Operating Current: 510mA at 12V, 240mA at 24V

Maximum Standby Current: 330mA at 12V, 160mA at 24V

Charge Fail / Excitation Range: 0-35V

Frequency Range: 3.5-75Hz

Generator / Mains Voltage Test Range: 15VAC- 415VAC (L-N), 26VAC-719VAC(L-L)

Package weight: 957g (approx.)

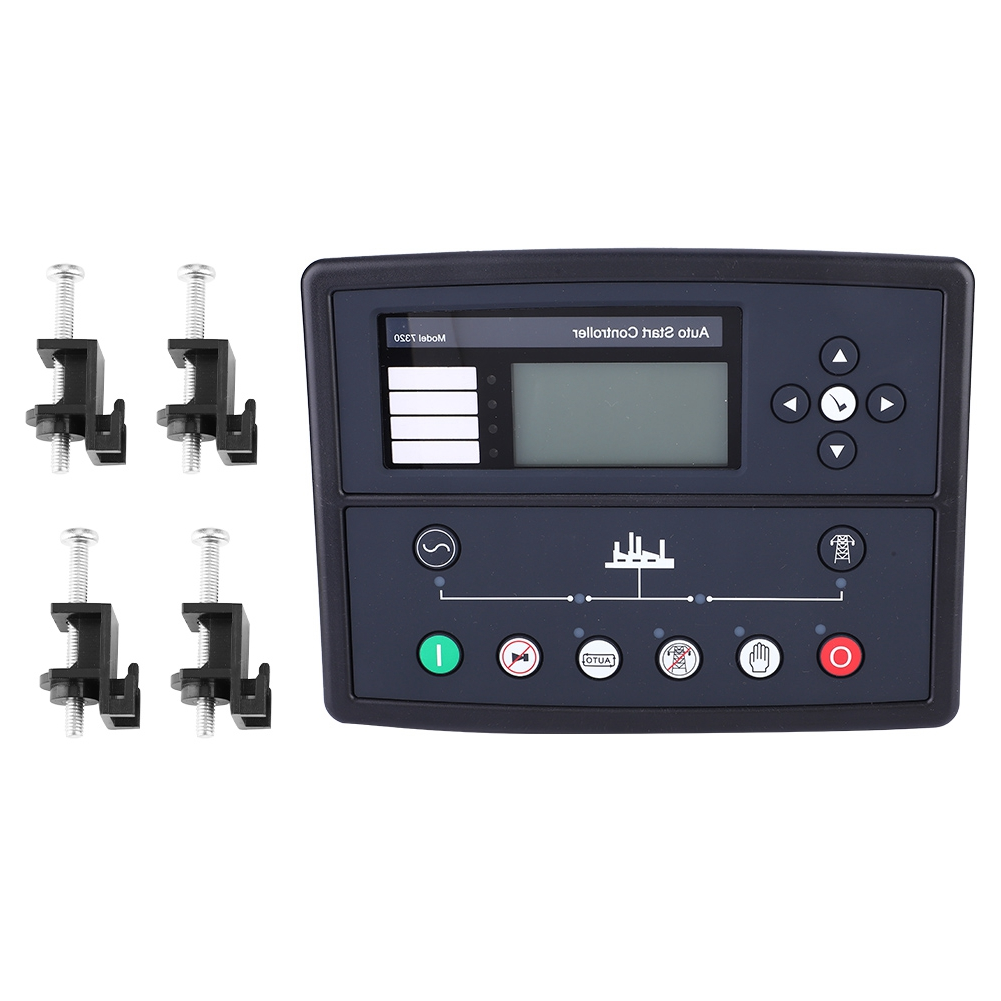

Package List:

1 * Auto Start Controller

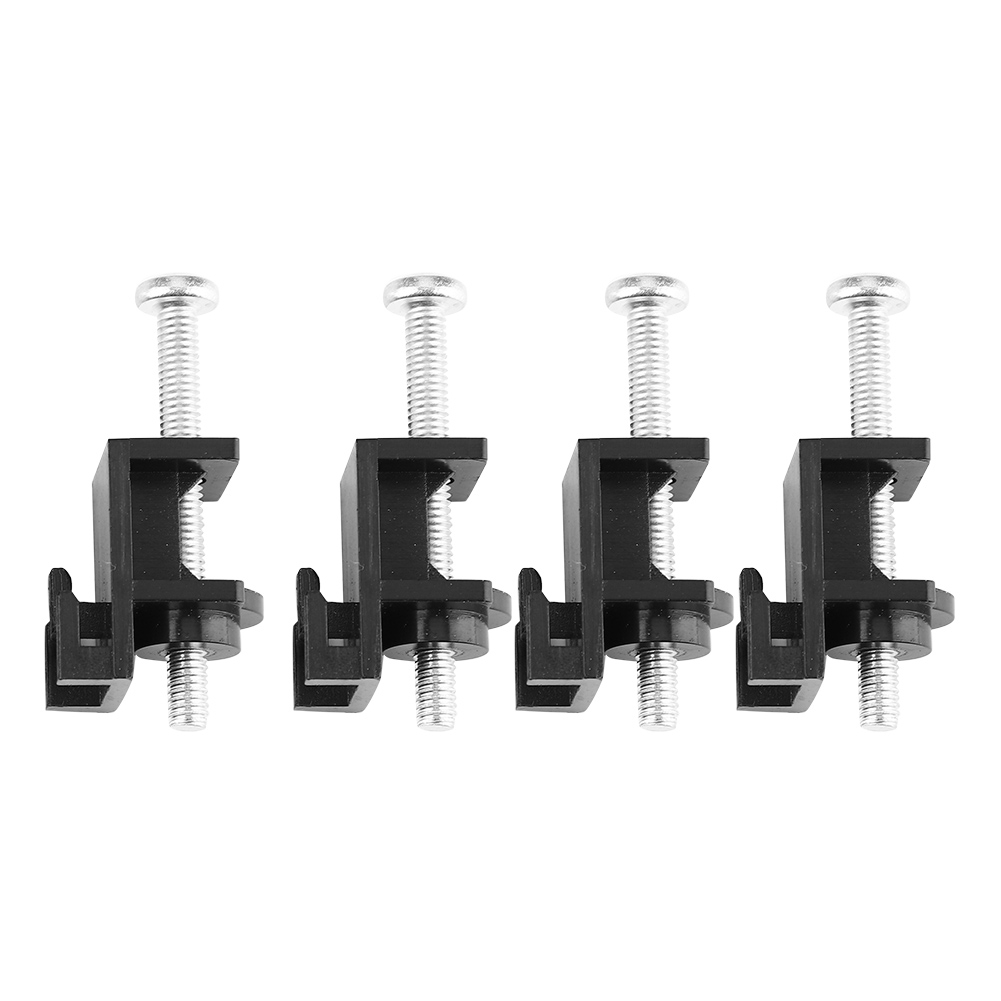

4 * Screws
