Introductions:

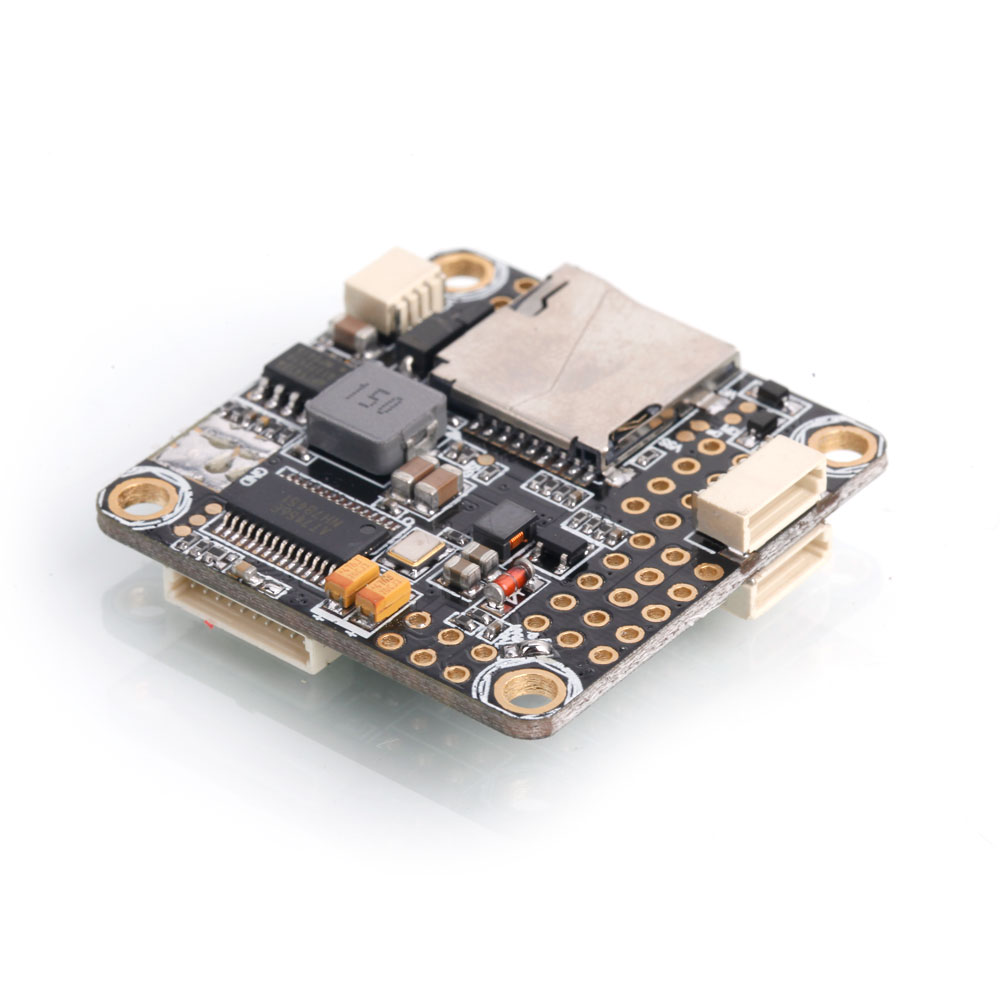

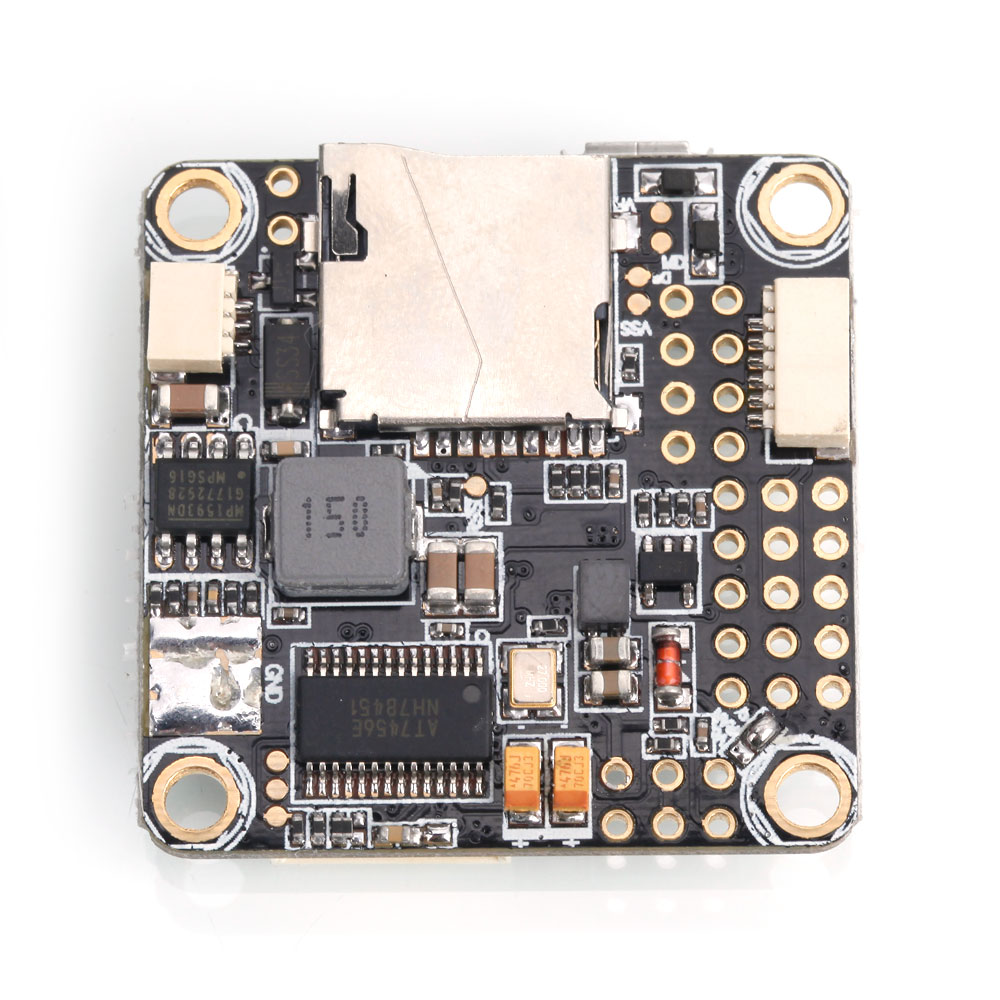

The Omnibus OSD F3 Pro Brushless Flight Controller Betaflight_3.1.7 30.5*30.5mm integrates flight controller and OSD into one MCU, so no extra MCU is required to control OSD. In the meantime, OSD configuration software is also combined with flight control. The input and output ports adopt standard device connector to reduce the use of adapters for increased stability and convenience. What's more, it uses the MPU6000 over SPI for the best possible flight performance. Click and order now!
Features:
1. A new generation AIO flight control for FPV
2. Based on F303 MCU, using F3 MCU controls OSD over SPI bus in DMA mode
3. OSD configation has been incl. in Betaflight GUI
4. Support SD card and LIPO direct input (2-6S)
5. MPU6000 at SPI bus
6. Built-in current sensor
7. TDK power filter for VTX and camera
Specifications:
1. Item Name: F3 Flight Controller
2. Lipo Input: 2-6S

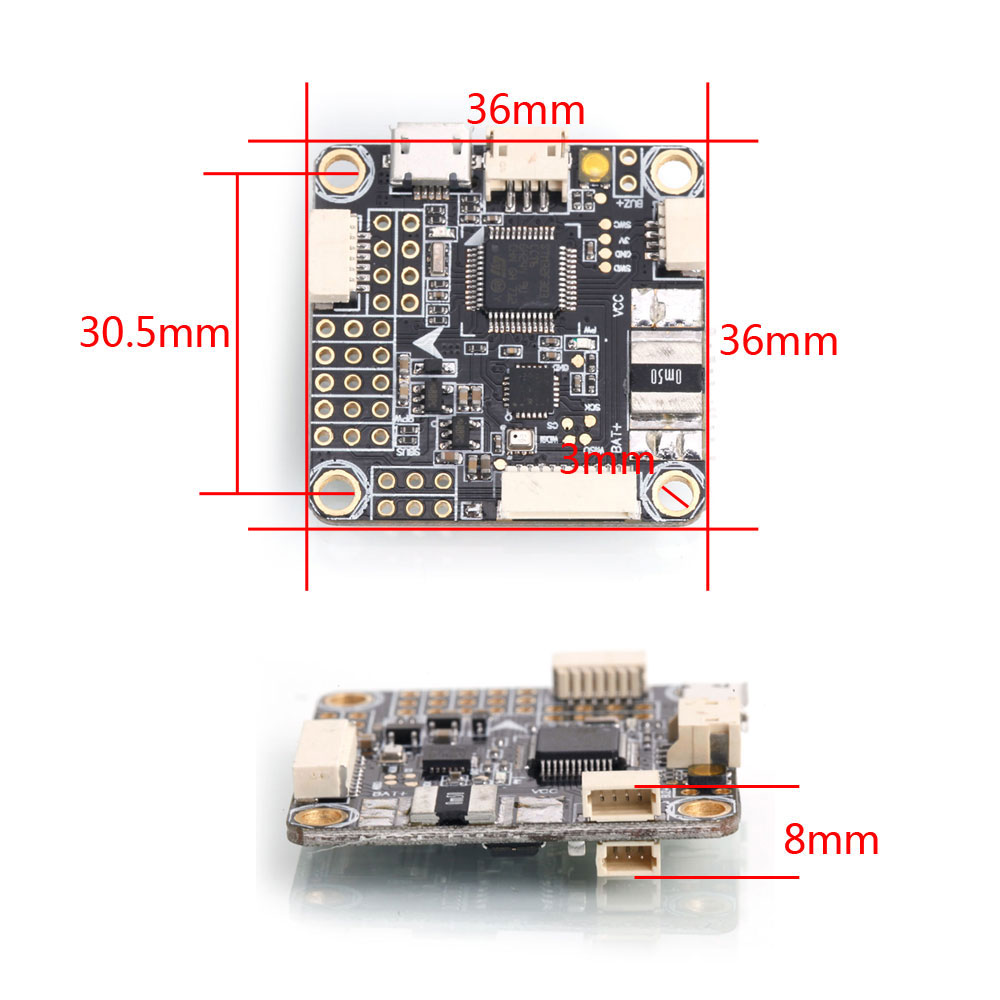

3. Size: 36mmx36mm
4. Mount Holes: 30.5mmx30.5mm
5. Firmware: STM32 F303 MCU, Runs Betaflight 3.0
6. SBUS/PPM Input: Pinheaders
7. 8PWM Output: 1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders
8. SPI Sensor: MPU6000
9. SBEC: 5V3A
Package Includes:
1 x Flight Controller
Note:
Pro Version uses SBEC which makes less heat than LDO version(The Normal Version)
