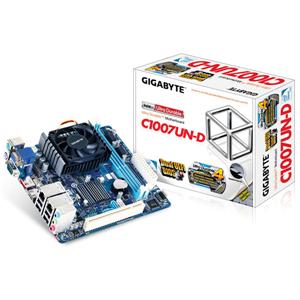

GIGABYTE GA-C1007UN-D Intel Celeron 1007U Dual LAN Mini-ITX Motherboard

Mouse over images to see larger version



Click to view supersize image


Gigabyte GA-C1007UN-D Dual LAN Intel Celeron Mini-ITX Motherboard

GIGABYTE's GA-C1007UN-D Mini-ITX Motherboard provides Dual Gigabit connectivity in a power-efficient, compact package. Powered by the Intel Celeron C1007UN (based on Core microarchitecture), the GA-C1007UN-D also features Intel HD Graphics support, capable of Dual, Hi-Resolution display support (also supports HD video playback). Humidity, ESD, High temperature and power failure protection provide built-in technologies for stability and operational longevity.

Key features

  • Intel Celeron 1007U Dual Core 1.5GHz Processor
  • Supports up to 16GB DDR3 memory
  • Industry-leading all-solid capacitor design
  • Dual Realtek 8111F Gigabit Controllers
  • VGA and HDMI; Intel HD Graphics; Support for dual independent display
  • eSATA 3.0Gb/s Port; SATA 6.0 and SATA 3.0Gb/s ports





Gigabyte GA-C1007UN-D Dual LAN Intel Celeron Mini-ITX Motherboard
Model Number GA-C1007UN-D
CPU Intel Celeron 1007U Dual Core Processor
1.5GHz Dual Core
32/64-bit
Chipset Intel NM70
Memory 2x 240-pin DDR3 DIMM slots
Supports Up to 16GB
Supports Dual Channel operation
1066/1333MHz
Video Intel HD Graphics
350MHz - 1GHz Dynamic Frequncy
Integrated Graphics Processor
1GB MAX Shared Memory
Supports Independent Dual Display
Audio Realtek ALC887 codec
7.1-Channel HD audio
Storage 1x SATA 6.0 Gb/s
2x SATA 3.0 Gb/s
1x eSATA 3.0Gb/s
Connectivity 10/100/1000
Realtek 8111F Gigabit Controller
Expansion Slots 1x PCI
Power Connector 24-pin ATX Power Connector
4-pin 12V Power Connector
Rear Panel I/O 2x PS/2
1x VGA
1x Serial
1x eSATA
1x HDMI
2x RJ45 LAN
4x USB 2.0
3x Audio I/O
Onboard I/O Headers 1x CPU Fan
1x System Fan
1x Front Panel Audio I/O
2x USB 2.0 (up to 2 ports)
1x Parallel
1x Serial COM
1x Chassis Intrusion
Special Features @BIOS
Q-Flash
Xpress Install
Xpress Recovery2
EasyTune 6
Smart Recovery 2
Auto Green
ON/OFF Charge
Form Factor Mini-ITX
170mm x 170mm (6.7" x 6.7")
Compliance FCC, CE, ErP/EuP Ready (ErP/EuP ready power supply is required)
BIOS Licensed AMI EFI
2 x 32 Mb Flash
Support for DualBIOS
PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Warranty 3-Year Limited Manufacturer Warranty
Included in Box Gigabyte GA-C1007UN-D Mini-ITX Motherboard
I/O Shield
SATA Cables
Product guide
Driver & application disc
