LMMDB

Coilovers Suspension Kit for Vauxhall Corsa D S07 2006-2014



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​



Fitment


for Vauxhall Corsa D (S07) 2006-2014


for Alfa Romeo Mito (Type 955) 2008-2018


for Fiat Grande Punto (199) 2005-2018

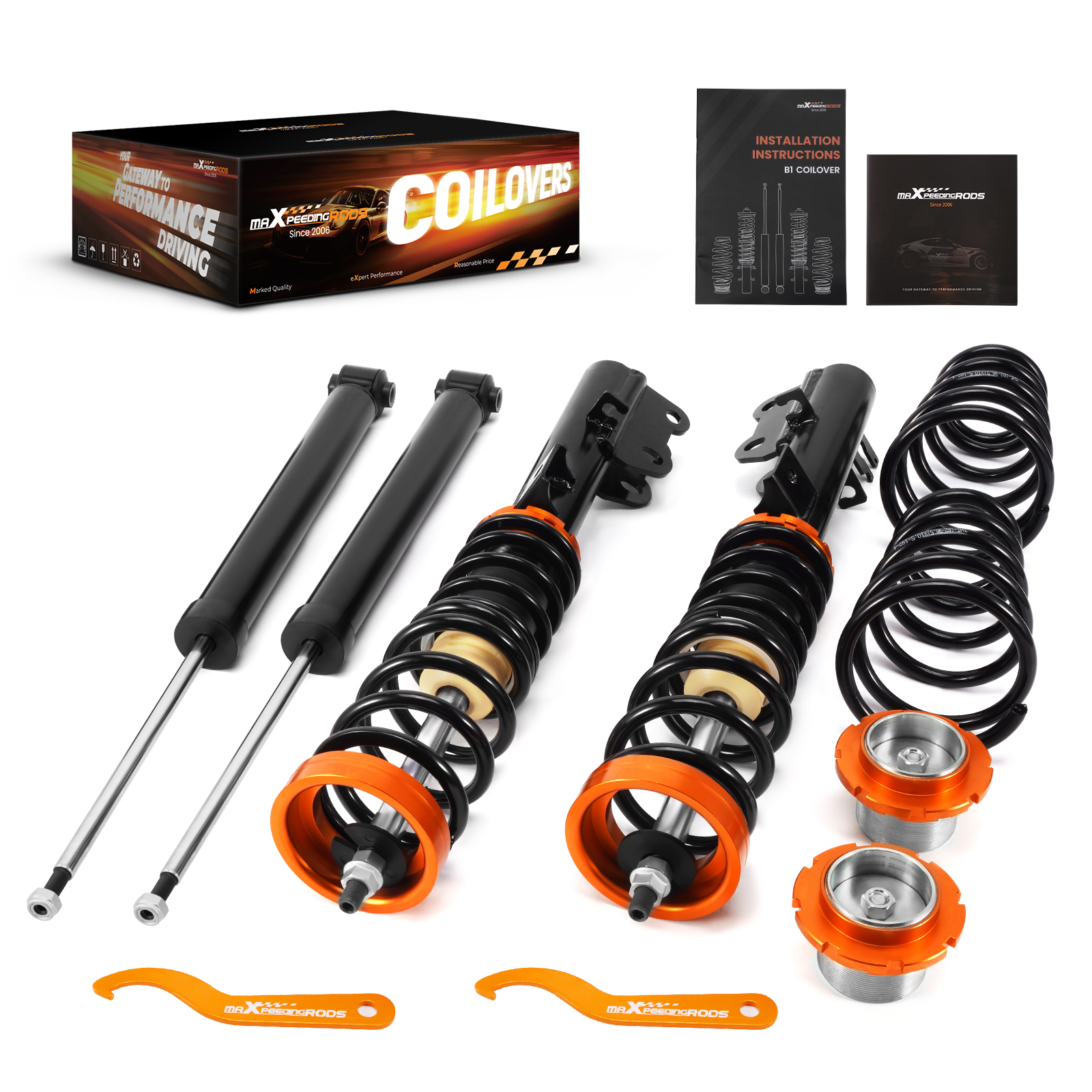

 Package included:


 2x Front coil-overs

2x Rear coil-overs

2x C spanners

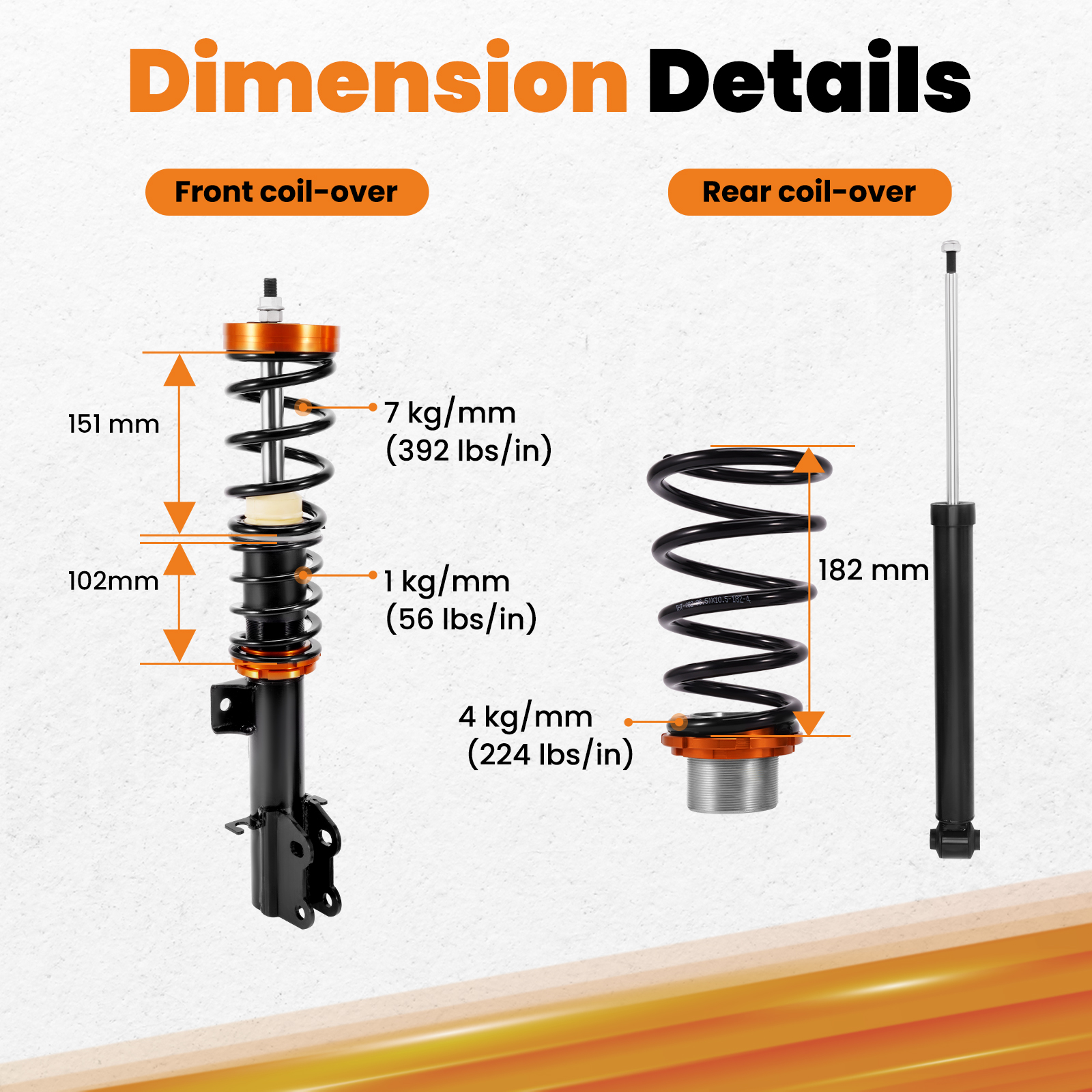

Specification


Front Lowering 30-85mm (depends on your vehicle)
Rear Lowering 30-65mm (depends on your vehicle)
Damping fixed damping
Spring rate Front 7 kg/mm (392 lbs/in)
Spring rate Rear 4 kg/mm (224 lbs/in)
Spring length Front 151 mm
Spring length Rear 182 mm
Front spring inner diameter 64-73.5 mm
Rear spring inner diameter 62-96.5 mm
Spring Preload advised 7-10 mm
Shock Type Twin Tube



Feature

maXpeedingrods B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

1. Lower height adjustable (depends on vehicle models)

2. Dust boot, solid rubber bump stops

3. Weight Saving Aluminum Components And heavy duty Steel Lower Mount Brackets

4. Simple install, Easy to adjust.

5. Use the vehicle's original upper mounts (not included in our product kit).

Note:



1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
