CHONGYTTUO®

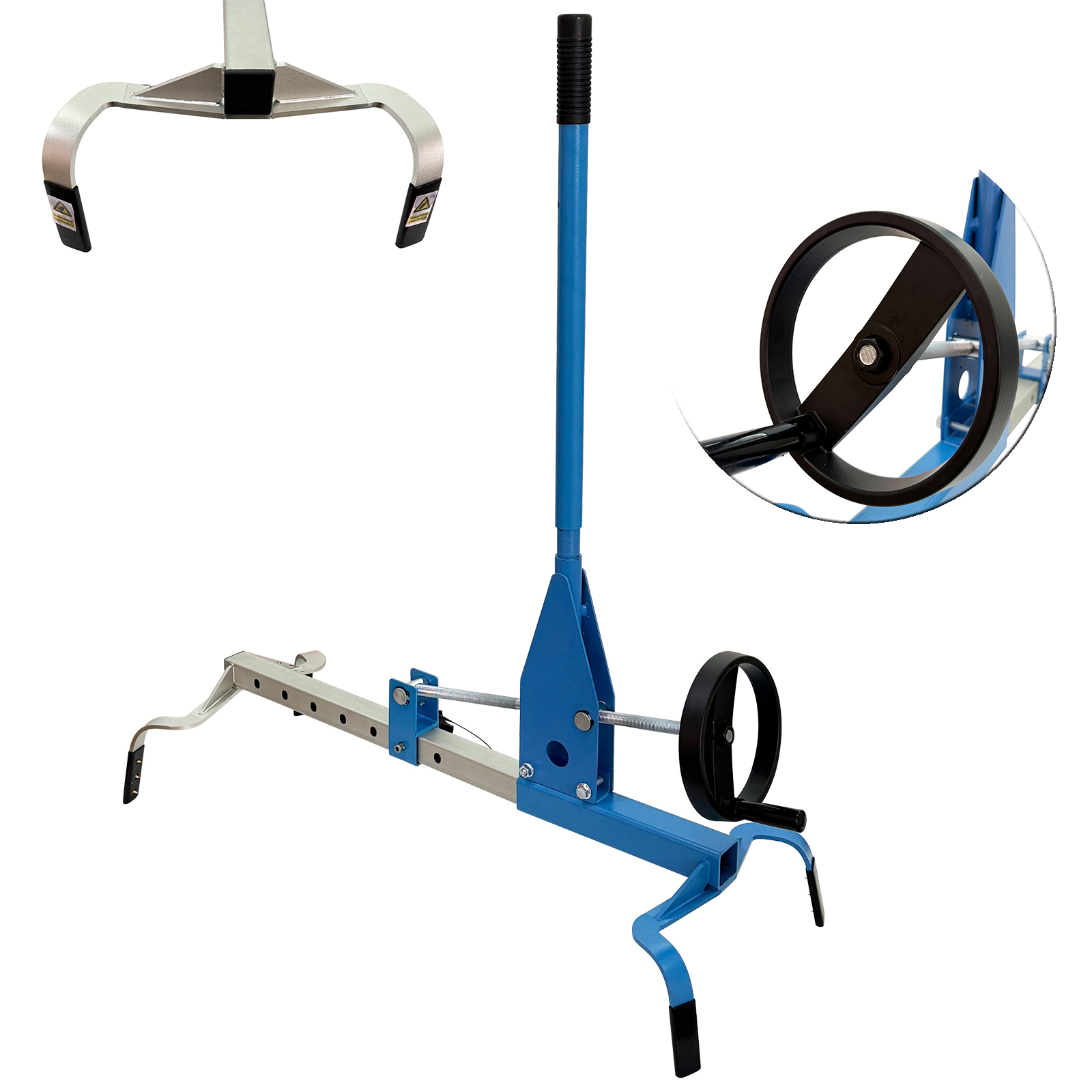

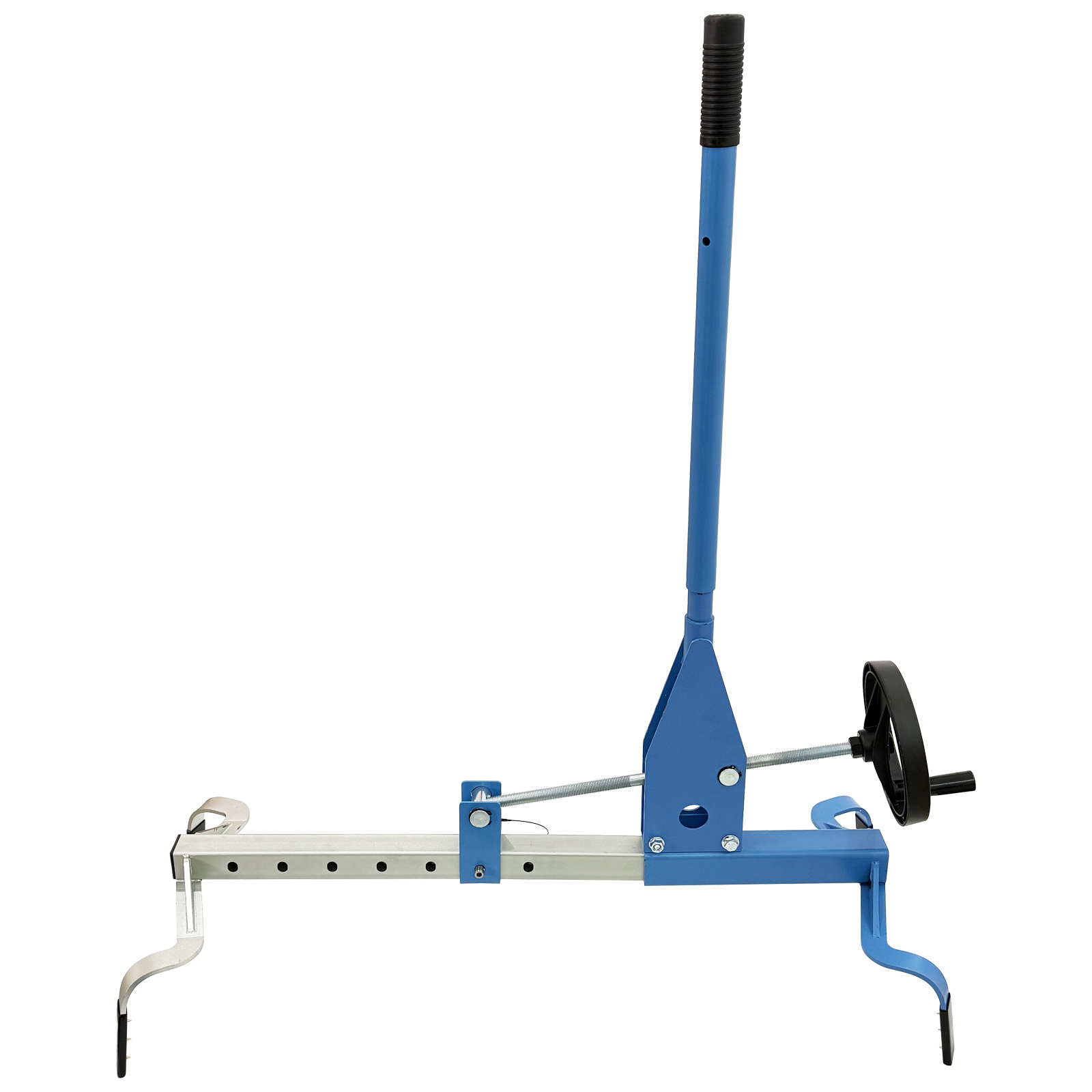

Automotive Chassis Clearance Chassis
Rattle Detector Portable Detection Tool
| Applicable tire specification | 13-22 inches |
| Extending range | 20.8-31.5 inches (530-800mm) |
| Packing dimension | 27.9*15.7*9 inches (71*40*23cm) |
| Net weight / Gross weight | 24.2LBs (11kg) / 26.5LBs (12kg) |
1. Do not overload or outrange the detector during operation.
2. Do not pry the chassis with the detector or strike the detector against the chassis.
3. During operation, do not put hands or other body parts into the space between the tire and detector, the space below the chassis and other dangerous regions.
4. Slowly operate the handwheel at the uniform speed to avoid mechanism jam.
5. The support legs of the detector must be completely attached to the ground. Do not use the detector in the suspended and unstable state.

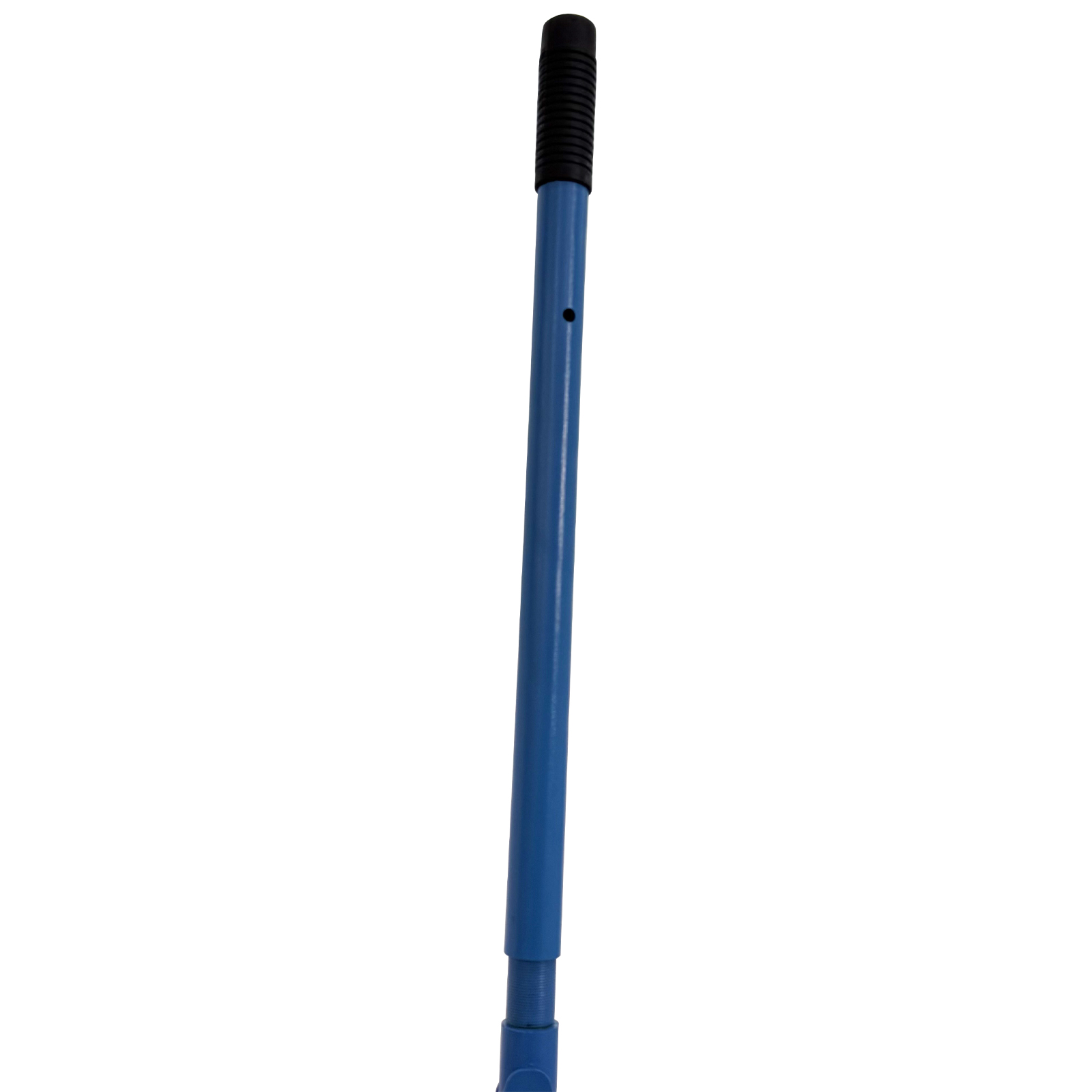

Swing Lever
The swing lever is equipped with an anti-skid sleeve, allowing the operator to hold it firmly, substantially improving the controllability and safety of force application. The lengthened handle design saves labor and reduces the labor intensity.

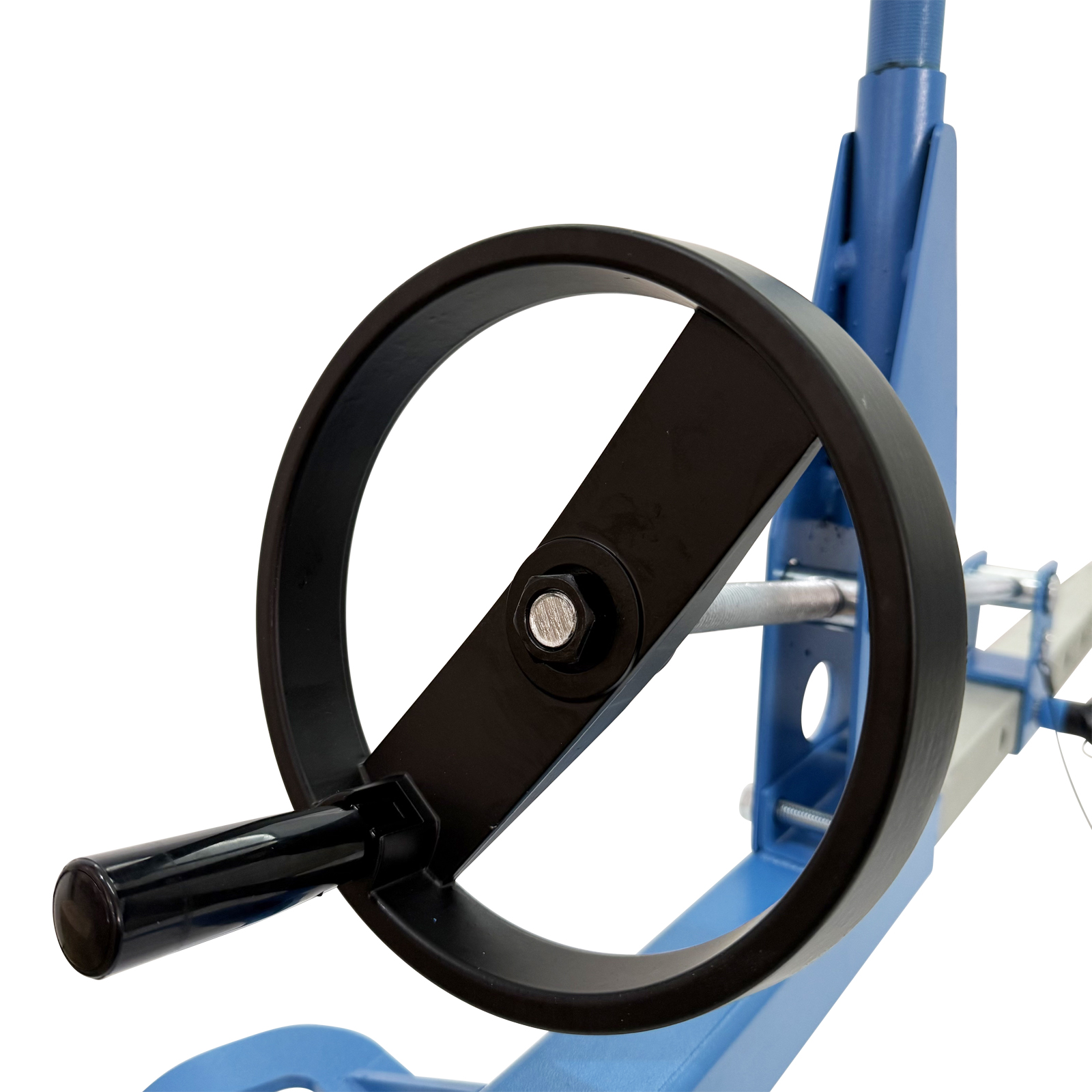

Handwheel
The large-sized handwheel meets ergonomic standard, and is rigidly connected with the lead screw to achieve accurate transmission and precise detection. It is resistant to wear and impact, easy to clean and maintain and convenient to replace.

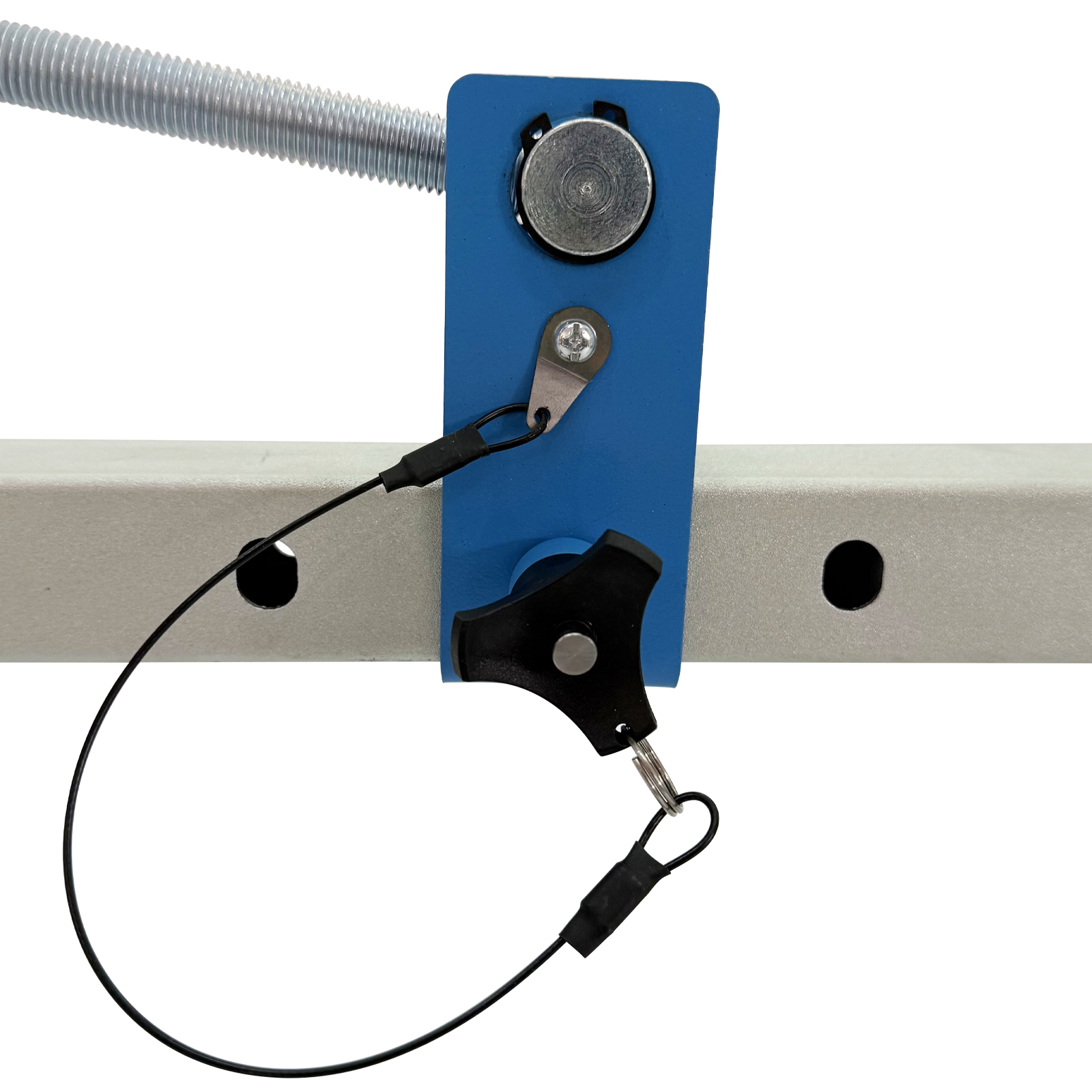

Locking Mechanism
The fixing knob is designed for easily achieving reliable locking and unlocking, and operation is effortless and quick. The anti-loss rope design can effectively prevent the knob from loss and improve the safety.

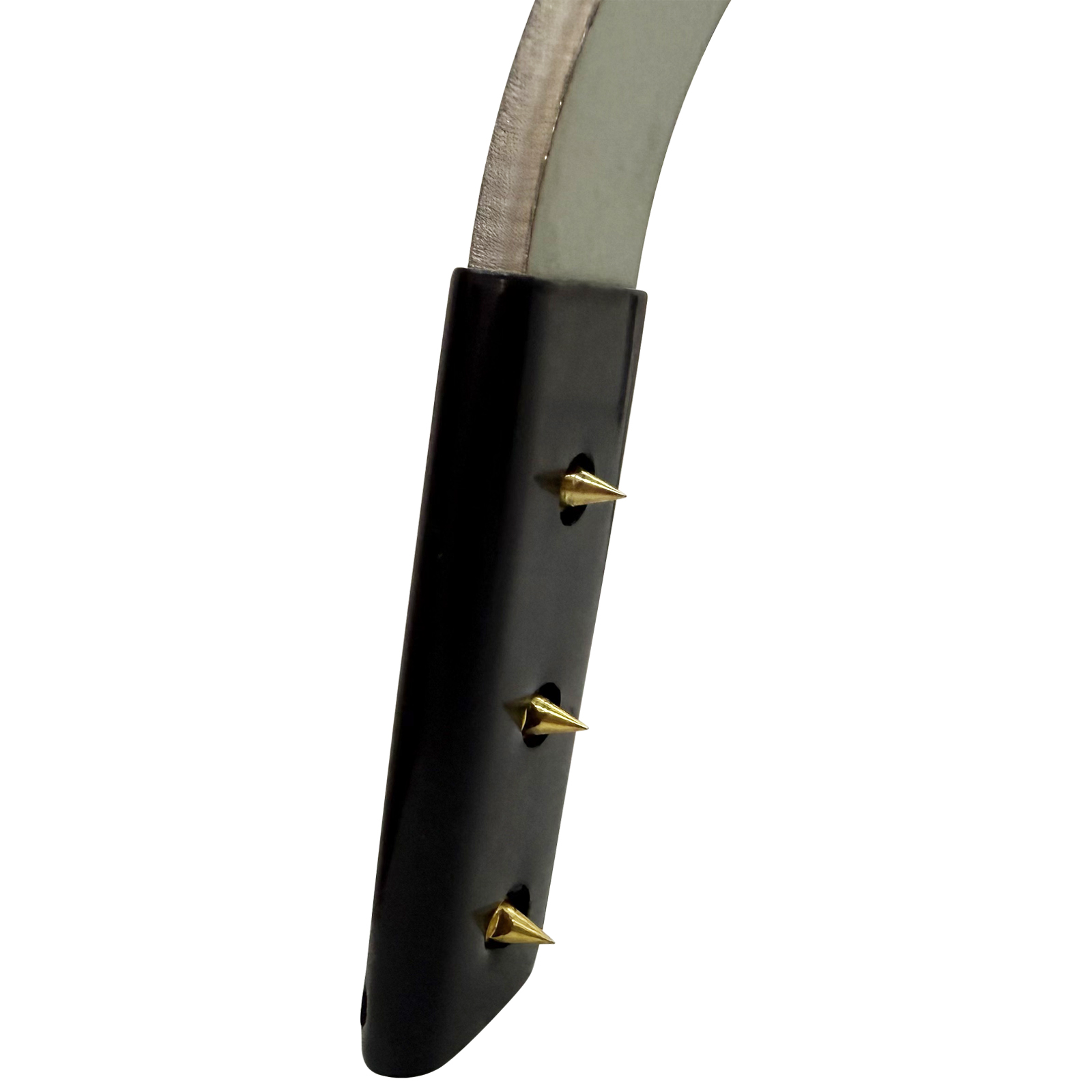

Supporting Leg
The supporting leg is equipped with the antiskid pad and studs, effectively ensuring dual protection and prolonging the service life. The non-skid studs can improve the clamping stability and avoid the detection fault.
