Features:

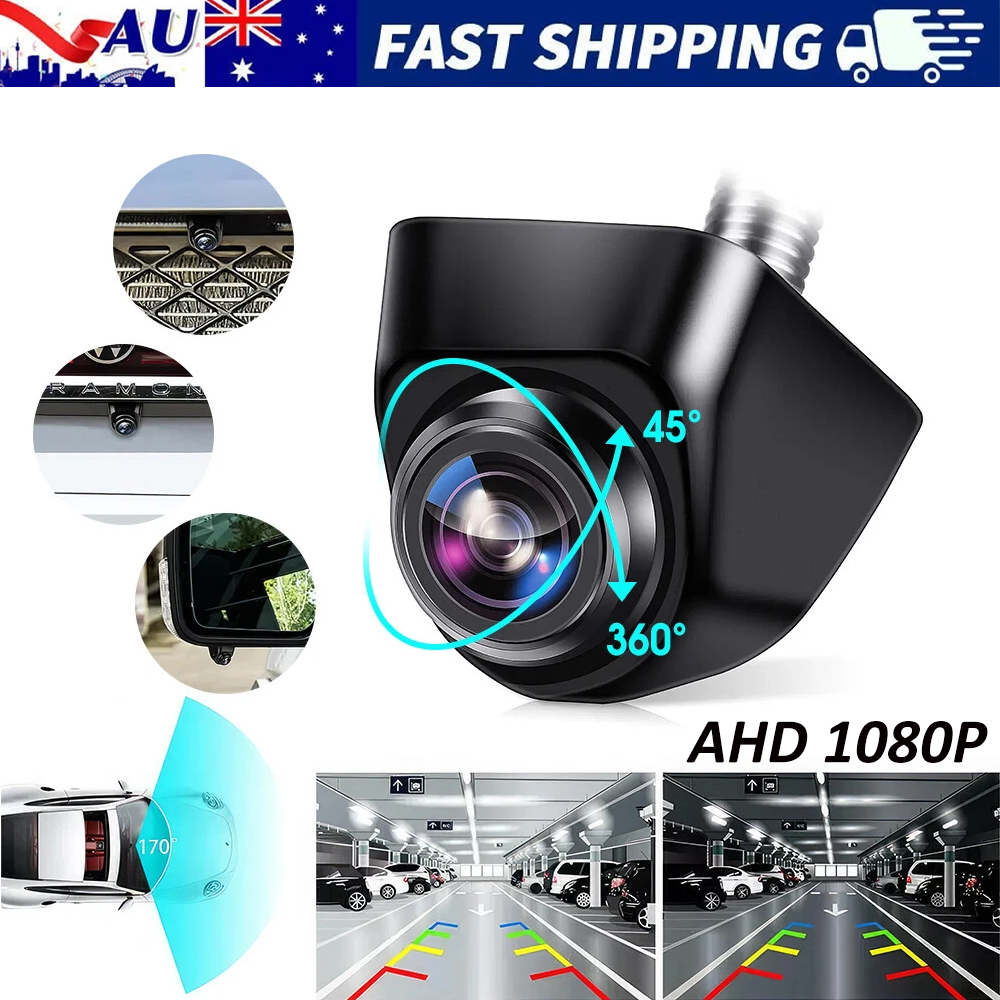

360° ROTATABLE LENS – Never worry about image being too high or too low. Rotate the lens up/down/left/right to find the perfect viewing angle anytime, anywhere – no need for extra gaskets or re‑mounting.
3-IN-1 UNIVERSAL COMPATIBILITY – Supports both AHD and CVBS signals (switchable). Also features mirror/normal image switch and guidelines on/off. Works with almost any head unit – no more compatibility issues when upgrading your monitor.
SUPER NIGHT VISION & 170° WIDE ANGLE – Equipped with Sony chip, F1.8 large aperture, 6‑glass lens and WDR technology. Delivers clear, true‑color images even in low light. 170° ultra‑wide view covers most blind spots for safer parking at night.
IP69K WATERPROOF & 12V-24V COMPATIBLE – Fully sealed glue‑fill craft, made of high‑purity resin. No worry about water, fog, or mist in any weather. Works with 12V to 24V vehicles – perfect for cars, vans, trucks, RVs, and mini‑vans.
UNIVERSAL RCA CONNECTION – Standard RCA output works with aftermarket LCD/TFT monitors or head units that have RCA input. Supports mirror/normal image switch – can also be used as front or side camera.
3 SWITCHER CABLES – Cut white cable to switch mirror ↔ normal image. Cut orange cable to switch CVBS ↔ AHD (1080P 30Hz NTSC). Cut green cable to turn off parking guidelines. Reconnect power after cutting any cable.
Specifications:
| Item | Details |
|---|---|
| Power Supply | DC 12V-24V (compatible) |
| TV System | NTSC / AHD switchable |
| Effective Pixels | AHD: 1920×1080P, CVBS: 800×480P |
| Lens Angle | 2.8mm / 120° – 1.8mm / 170° |
| Minimum Illumination | 0.2 Lux / F1.8 (0 Lux with LED) |
| Waterproof Rating | IP69K |
| Current Consumption | ≤300mA |
| Operating Temperature | -30°C to 65°C (RH95% max.) |
| Storage Temperature | -40°C to 75°C |
| Video Output | 1.0 Vp-p, 75Ω |
| S/N Ratio | >48dB |
| Weight | 160g |
Package Included:
1x Car Backup Camera (360° rotatable)
1x Allen Key
1x 6M RCA Video Cable
1x 1M Power Cable
1x User Manual
Important Notes:
Signal Switching (Default: AHD)
If your monitor does NOT support AHD, cut the orange cable to switch to CVBS (720p, 30 FPS).
Cut the white cable to switch from rear view (mirror image) to front view (non‑mirror).
Cut the green cable to hide the reversing guidelines.
Compatibility Warning
This backup camera is designed for head units or monitors with RCA video input. It will NOT work directly with dash cams or mirror dash cams due to different pin definitions and connections.
