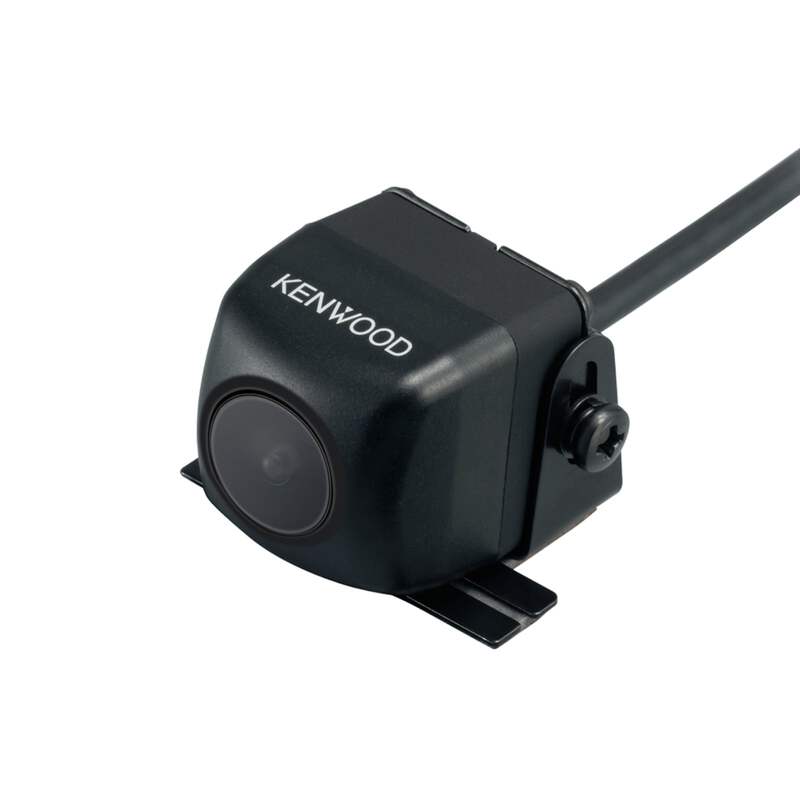

The Kenwood CMOS-230 is a compact, waterproof rear-view reversing camera with a 1/3.6-inch colour CMOS sensor, designed to work with Kenwood DMX, DDX and DNX head units.

This listing is the CMOS-230. The Kenwood reversing camera range is also available as the CMOS-320 Multi View and the CMOS-740HD for HD screens.

Key specifications

  • Sensor: 1/3.6" colour CMOS, approx. 330,000 pixels
  • Field of view: ±128° horizontal, ±103° vertical
  • Video output: NTSC (mirror view), 1Vpp 75Ω, RCA
  • Connection cable (DC + video): 9 m
  • Operating voltage: 14.5V (9 to 16V allowable)
  • Dimensions (W x H x D): 23.4 x 23.4 x 23.9 mm
  • Weight: 22 g

CMOS-230 rear view CMOS camera

A compact, weatherproof reversing camera that connects to Kenwood DMX, DDX and DNX head units via an RCA video output. It activates automatically from the reverse line and uses a 9 m combined DC and video cable to reach the head unit's camera input.

Don't miss a thing in reverse

The CMOS-230's sensitive 1/3.6" CMOS sensor and high-quality lens deliver a clear wide-angle mirror image even in low-light conditions such as car parks at night, making reversing safer without relying on mirrors alone.

  • Wide-angle mirror image
  • 1/3.6" colour CMOS sensor
  • Waterproof unit with flexible mount base
  • NTSC video signal out (RCA)

Kenwood CMOS-230 Rear View Reversing Camera Universal DMX DDX DNX Car Stereos

The Kenwood CMOS-230 is a compact, waterproof rear-view reversing camera with a 1/3.6-inch colour CMOS sensor, designed to work with Kenwood DMX, DDX and DNX head units. This listing is the CMOS-230. The Kenwood reversing camera range is also available as the CMOS-320 Multi View and the CMOS-740HD for HD screens. Key specifications Sensor: 1/3.6" colour CMOS, approx. 330,000 pixels Field of view: ±128° horizontal, ±103° vertical Video output: NTSC (mirror view), 1Vpp 75Ω, RCA Connection cable (DC + video): 9 m Operating voltage: 14.5V (9 to 16V allowable) Dimensions (W x H x D): 23.4 x 23.4 x 23.9 mm Weight: 22 g CMOS-230 rear view CMOS camera A compact, weatherproof reversing camera that connects to Kenwood DMX, DDX and DNX head units via an RCA video output. It activates automatically from the reverse line and uses a 9 m combined DC and video cable to reach the head unit's camera input. Don't miss a thing in reverse The CMOS-230's sensitive 1/3.6" CMOS sensor and high-quality lens deliver a clear wide-angle mirror image even in low-light conditions such as car parks at night, making reversing safer without relying on mirrors alone. Wide-angle mirror image 1/3.6" colour CMOS sensor Waterproof unit with flexible mount base NTSC video signal out (RCA)
CEN
Free UK Mainland Delivery
CEN - Audio & Visual Specialist
Kenwood CMOS-230 Rear View Reversing Camera Universal DMX DDX DNX Car Stereos

Kenwood CMOS-230 Rear View Reversing Camera Universal DMX DDX DNX Car Stereos

✓ Same-Day Dispatch Before 2pm
SKU
91055
MPN
CMOS-230
Warranty
1 Year
Condition
New
✔Authorised RetailerOfficial UK stock
➤Fast DispatchSame day before 2pm
☎Expert SupportDecades of experience

Product Description

The Kenwood CMOS-230 is a compact, waterproof rear-view reversing camera with a 1/3.6-inch colour CMOS sensor, designed to work with Kenwood DMX, DDX and DNX head units.

This listing is the CMOS-230. The Kenwood reversing camera range is also available as the CMOS-320 Multi View and the CMOS-740HD for HD screens.

Key specifications

  • Sensor: 1/3.6" colour CMOS, approx. 330,000 pixels
  • Field of view: ±128° horizontal, ±103° vertical
  • Video output: NTSC (mirror view), 1Vpp 75Ω, RCA
  • Connection cable (DC + video): 9 m
  • Operating voltage: 14.5V (9 to 16V allowable)
  • Dimensions (W x H x D): 23.4 x 23.4 x 23.9 mm
  • Weight: 22 g

CMOS-230 rear view CMOS camera

A compact, weatherproof reversing camera that connects to Kenwood DMX, DDX and DNX head units via an RCA video output. It activates automatically from the reverse line and uses a 9 m combined DC and video cable to reach the head unit's camera input.

Don't miss a thing in reverse

The CMOS-230's sensitive 1/3.6" CMOS sensor and high-quality lens deliver a clear wide-angle mirror image even in low-light conditions such as car parks at night, making reversing safer without relying on mirrors alone.

  • Wide-angle mirror image
  • 1/3.6" colour CMOS sensor
  • Waterproof unit with flexible mount base
  • NTSC video signal out (RCA)

Specifications

  • Camera Type    1/3.6" colour CMOS sensor
  • Colour type    Yes
  • Effective number of pixels roughly    330000
  • High sensitivity Pixels    Yes
  • Output video    wide-angle mirror image
  • Waterproof chassis    Yes
  • Mounting system    Fexible mount base
  • Installation positions    Rear
  • Rear view switching    Reverse line
  • High voltage protection    Yes
  • Wide angle lens    Yes
  • Focal length    f: 1.12mm, F value 2.2
  • Field of View (Horizontal)    +/- 128°
  • Field of View (Vertical)    +/- 103°
  • Illumination range    approx. 0.9 to 100000 lux
  • Iris System    Electronic
  • White balance    Automatically
  • Scanning System    Interlace
  • Synchronizing System    Internal
  • Video output level    1Vpp, 75Ω
  • Video signal format    NTSC (Mirror view)
  • Connection cable (DC+video)    9 m
  • Operating voltage    14.5V (9 ~ 16V Allowable)
  • Maximum Current Consumption    0.05A
  • Dimensions (WxHxD)    23.4 x 23.4 x 23.9mm
  • Weight    22 gr.
  • Operation Temperature Range    -30°C ~ 70°C
  • Storage Temperature Range    -40°C ~ 80°C

What's In The Box

  • Kenwood CMOS-230
  • Mount
