NJY2033 V2.0-C LVDS TTL VGA PC-RGB/AV/S-VIDEO universal LCD controller board
Small and medium size LCD board for DIY
Ready to use by setting jumper at right position.
Item No.: NJY2033 V2.0-C
Package includes: 1pc controller board.
Support panel resolutions : (Jumper-resolutions table)
|
CN14 |
1-2 |
3-4 |
5-6 |
7-8 | |
|
1280x1024 2ch LVDS 8bits RGB |
LVDS |
0 |
0 |
0 |
0 |
|
1024x768 1ch LVDS 8bits RGB |
LVDS |
1 |
0 |
0 |
0 |
|
1024x768 1ch LVDS 6bits RGB |
LVDS |
0 |
1 |
0 |
0 |
|
800x600 1ch LVDS 6bits RGB |
LVDS |
1 |
1 |
0 |
0 |
|
1280x800 1ch LVDS 6bits RGB |
LVDS |
0 |
0 |
1 |
0 |
|
1400x1050 2ch LVDS 6bits RGB |
LVDS |
1 |
0 |
1 |
0 |
|
1440x900 2ch LVDS 6bits RGB |
LVDS |
0 |
1 |
1 |
0 |
|
1440x900 2ch LVDS 8bits RGB |
LVDS |
1 |
1 |
1 |
0 |
|
1920x1200 2ch LVDS 6bits RGB |
LVDS |
0 |
1 |
1 |
1 |
|
1680x1050 2ch LVDS 8bits RGB |
LVDS |
1 |
1 |
1 |
1 |
|
1024x768 1ch TTL 8bits RGB |
TTL |
0 |
0 |
0 |
1 |
|
1024x768 2ch TTL 8bits RGB |
TTL |
1 |
0 |
0 |
1 |
|
800x600 1ch TTL 8bits RGB |
TTL |
0 |
1 |
0 |
1 |
|
1280x1024 2ch TTL 8bits RGB |
TTL |
1 |
1 |
0 |
1 |
|
1280x768 2ch TTL 8bits RGB |
TTL |
0 |
0 |
1 |
1 |
|
640x480 1ch TTL 8bits RGB |
TTL |
1 |
0 |
1 |
1 |
Notes: 8-7 6-5 4-3 2-1 refer to jumper positions.
Below you will find the detailed feature
|
Video Input |
S-Video |
S-Y:1.0V Vp-p +/-5% S-C:0.3Vp-p +/-5% | ||
|
CVBS |
1.0Vp-p +/-5% | |||
|
PC-RGB |
Format |
Up to 1920*1200@60HZ | ||
|
Color |
16bit, 24bit, 32bit | |||
|
Audio input |
S-Video,CVBS,PC-RGB |
Left and right audio input | ||
|
Power |
Power Requirement |
12V | ||
|
To panel |
3.3V,5V,12V | |||
|
Manage |
Low power consumable mode: standby<2W | |||
|
OSD Language |
English, French ,Spanish , Italian, German, Portuguese, Dutch(Option ) | |||
|
Key Functions |
CH-,CH+,MENU,VOL-,VOL+,AUTO,ON/OFF (Control by remote control) | |||
|
Audio Output |
2w (8 Ω) | |||
|
Comb Filter |
/ |
De-interlace |
/ | |
|
Weak signal enhancement |
/ | |||
|
Nosier reduction |
/ | |||
|
Panel Resolutions |
Up to 1920*1200@60HZ | |||
|

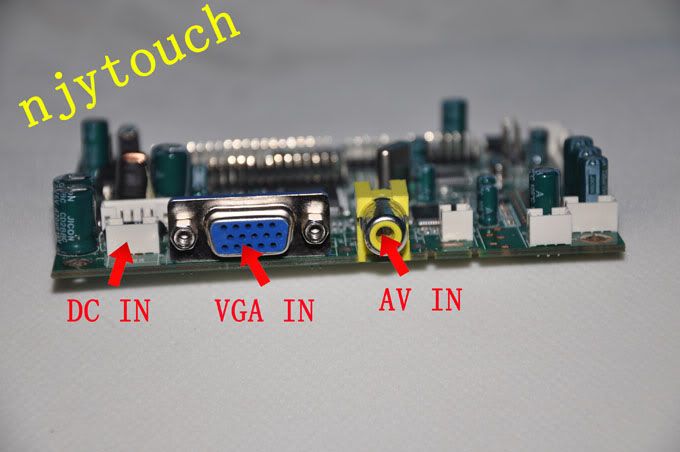

Terminals |
Input |
PC-RGB Input |
1D-SUB 15PIN terminal blue color | |
|
S-Video Input |
1S-Video terminal black color | |||
|
CVBS Input |
1RCA terminal yellow color | |||
|
CVBS Audio Input |
1 earphone terminal black color | |||
|
S-Video Audio Input | ||||
|
PC-RGB Audio Input | ||||
|
Output |
To Panel |
LVDS 30PIN/2.0 JACK,TTL(Option ) | ||
Learn more about this board:
Notes:Operation requirement
Do not press and distort.
Keep away from static and water.
Relative humidity: ≤80%
Storage temperature:-10~+
Operation temperature: 0~+
To make a full kit, you will also need:
1) keypad
2) LVDS cable
3) inverter
4) power adapter
5) VGA cable
You could get above items in our store. We could make combined shipping.
|
