2 HUB CENTRIC WHEEL ADAPTER
6X5.5 INCH/6x5.5 INCH
BOLT-ON WHEEL SPACERS - WIDEN YOUR WHEELS
1.25" THICK
12X1.5 THREAD SIZE STUDS
| VEHICLE BOLT PATTERN |
SAME BOLT PATTERN
 |
WHEEL BOLT PATTERN |
|
6x5.5" (6x139.7 MM)
|
6x5.5" (6x139.7 MM)
|
PRODUCT SPECIFICATION:

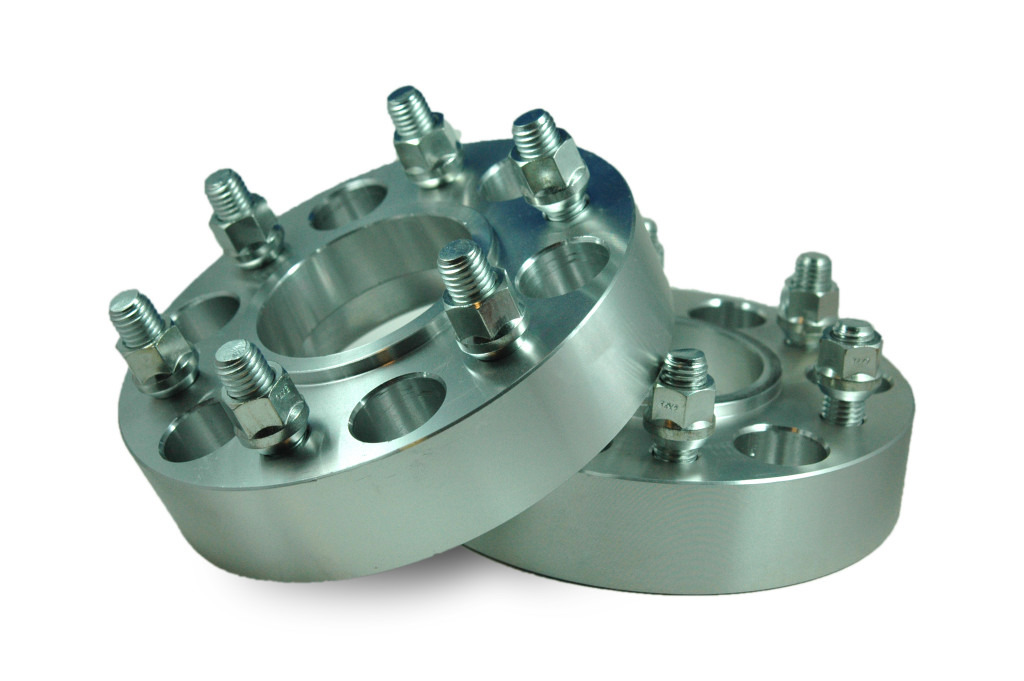

Set of 2 High Quality Forged 6061 Billet Hub Centric Wheel Adapters/Spacers
Hub Centric Design for a Snug Fit on Both the Vehicle and the Wheel
Stress on Bearing and Chance of Vibration is Greatly Reduced
Vehicle Side Bolt Pattern: 6x5.5" (6x139.7mm)
Wheel Side Bolt Pattern: 6x5.5" (6x139.7mm)
Thickness: 1.25 inch (32mm)
Studs Thread Size: 12x1.5
Open End Mounting Lug Nut: 12x1.5
Bore Diameter to Vehicle: 106mm
Bore Diameter to Wheel: 106mm
Stud Grade: 10.9
Material: Forged 6061-T6 Aircraft Billet
Complete Kit for Installation
WHY ARE WE SPECIAL
We literally make adapters. Custom order is welcome.
Fast shipping to all US territories. We ship internationally as well.
Experienced technical staff provides professional advice.
Our great customer service guarantees a smooth and easy shopping experience.
Quality control department ensures quality and reliable products.
SPECIAL SIZE CUSTOM BUILT IN-HOUSE UPON REQUEST. MADE IN USA.
SPECIAL NOTES
Must be hand torqued at 80 ft-lbs. Avoid using air guns.
The back of the wheel must sit flush on the adapter.
If vehicle studs stick out past the surface of the adapter, it may need to be shaved down so that wheels can mount flush. They can easily be ground or trimmed.
Check how 6 lug bolt pattern is measured.
| 6-LUG |
 |
Measure center to center of two holes directly across from each other. |
VEHICLE SIDE FITMENT
TOYOTA PICKUP 4WD: 1980-1995
TOYOTA 4RUNNER: 1986-2008
TOYOTA LANDCRUISER: 1993-1997
TOYOTA TACOMA: 1995-2008
TOYOTA TUNDRA: 1999-2006
FITMENT & COMPATIBILITY IS FOR THE PURPOSE OF VERIFYING VEHICLE SIDE BOLT PATTERN ONLY
|
