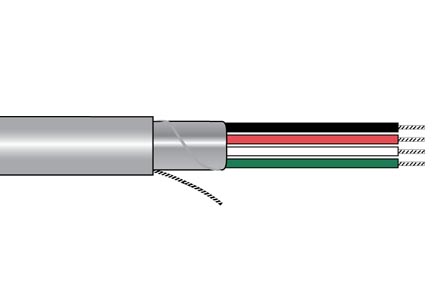

| 1) Component 1 | 8 X 1 COND | | | a) Conductor | 24 (7/32) AWG Tinned Copper | 0.024 | | b) Insulation | 0.010" Wall, Nom. PVC, Semi Rigid | 0.044 | | (1) Color Code | Alpha Wire Color Code E | | Cond | Color | Cond | Color | Cond | Color | | 1 | BLACK | 4 | ORANGE | 7 | BLUE | | 2 | BROWN | 5 | YELLOW | 8 | VIOLET | | 3 | RED | 6 | GREEN | | |
| | 2) Cable Assembly | 8 Components Cabled | | | a) Twists: | 6.9 Twists/foot (min) | | | b) Orientation: | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER | | c) Core Wrap | Nonwoven Polyester Tape, 25% Overlap, Min. | | | 3) Shield: | A/P/A Tape, 25% Overlap, Min. | | | a) Drain Wire | 24 (7/32) AWG Tinned Copper | | | b) Braid | Tinned Copper,70% Coverage, Min. | | | 4) Jacket | 0.032" Wall, Nom.,PVC | 0.243 (0.256 Max.) | | a) Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White | | b) Ripcord | 1 End 810 Denier Nylon | | | c) Print | ALPHA WIRE-* P/N 5118C 8C 24 AWG
XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C OR AWM
2464 80C 300V OR AWM 21894 105C 300V SUN RES 60C
OIL VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4
CE ROHS (SEQ FOOTAGE) |
|
|
|
