Description:

    LC301 SMD nH inductance tester is the latest R & D headquarters for the small professional inductance (0.1nH to 50uH) of the chip inductors specifically measuring instruments, test terminal using terminal Kelvin test clamp, connect the interface with four RCA jacks, very easy to use random matching patch clamp Kelvin test set, measuring range from 10nH to 50uH, resolution is 0.1nH, less than 10nH can tell, but not accurate enough, the test frequency of 200kHz, 100kHz, 50kHz, 20kHz four kinds can be depending on the flexibility to choose the inductor, the following are some of the local measurement chip inductors and 6000 U.S. BK886 diverse than holding the bridge test.

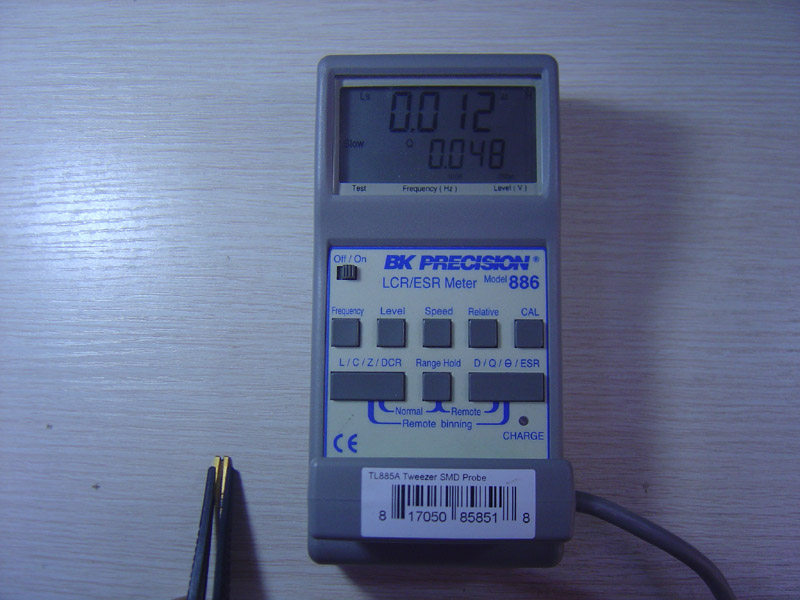

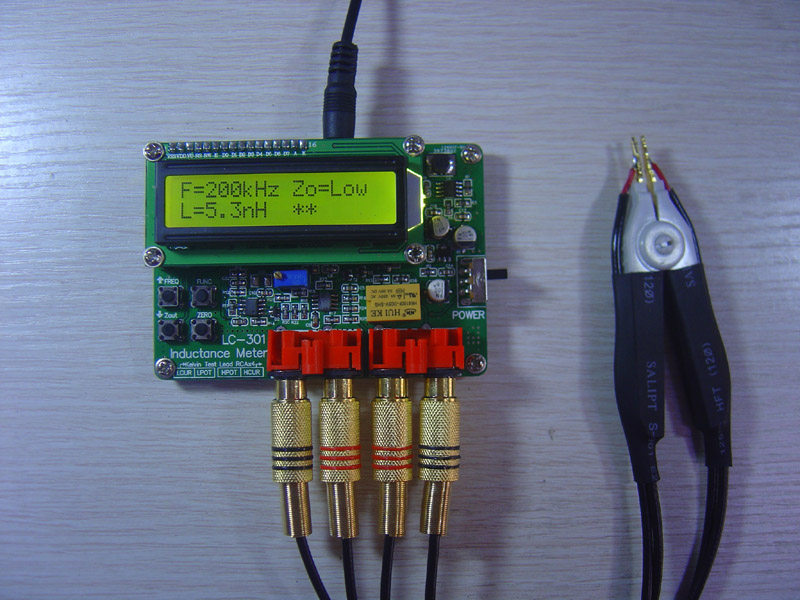

(1) The following picture is a local measure of a 3.9nH chip inductor, we can see that there is a certain error, but the same inductance bridge with BK886 test result is 12nH, more outrageous.

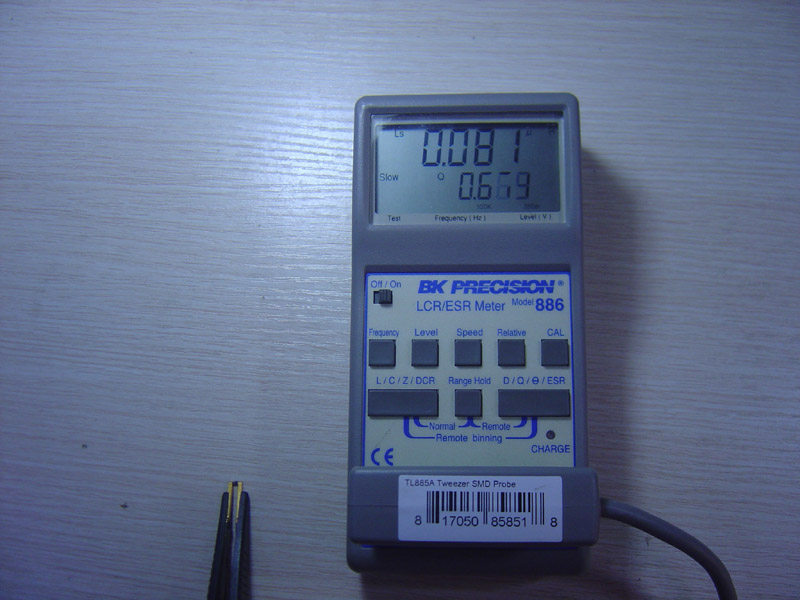

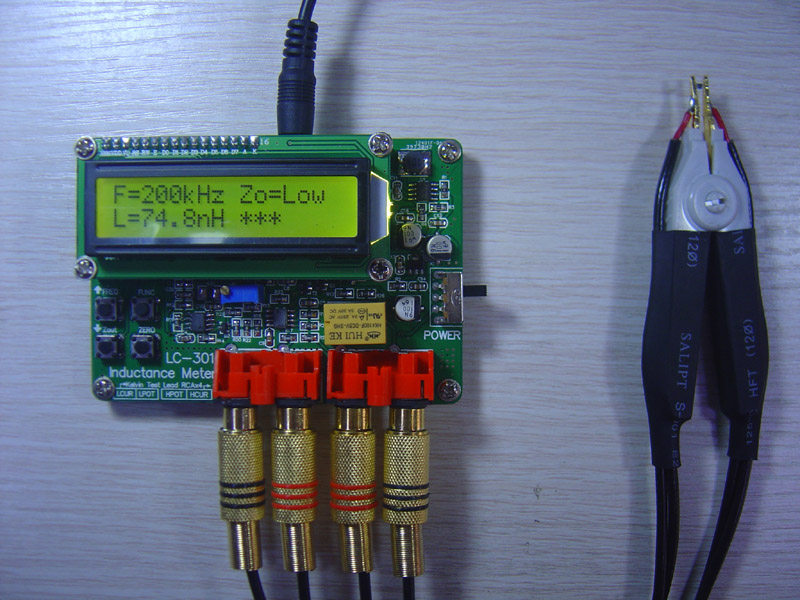

(2) The following picture is a local measure of a 68nH chip inductor, BK886 test result is 81nH, but please do not superstition nominal value, according to our measurements, there are profiteers in Fudge us better, I bought a inductor sample inside the inductor and the underlying values ​​are far better, perhaps the dealer could not find the same inductance, so they took us close to Mongolia, with the testing equipment, we can at least determine what is not it.

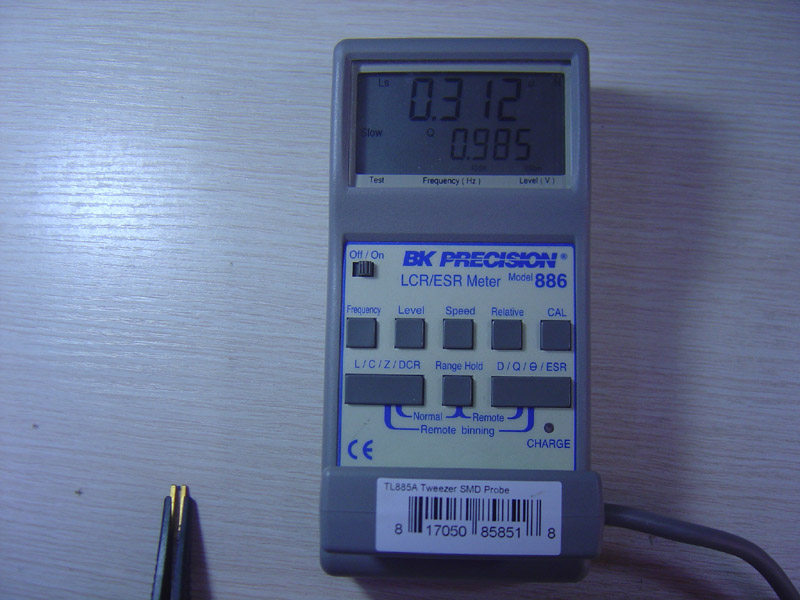

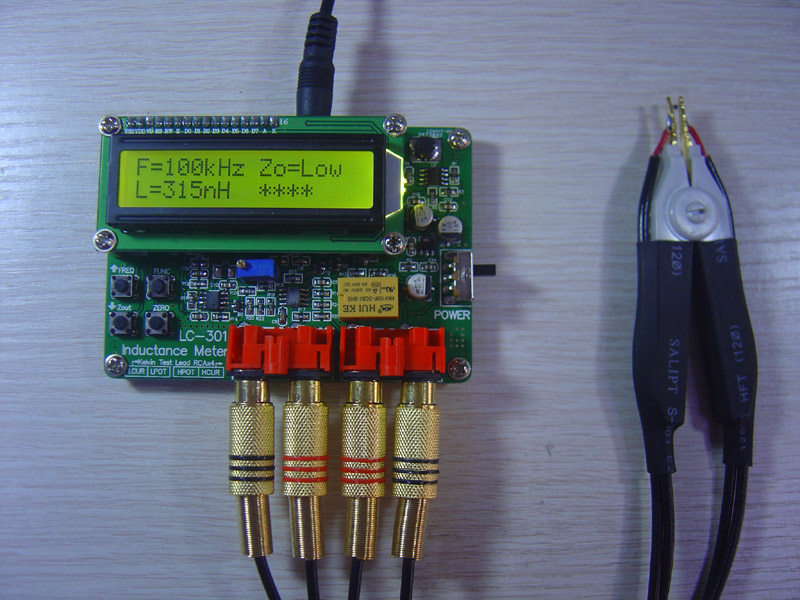

(3) measuring a 330nH laminated inductance, the machine is 315nH, BK886 measurement is 312nH, relatively close.

Package contents:

Accessories:

LC301 chip nH inductance tester 1 set

Kelvin test cable a patch

1 matching power supply units
