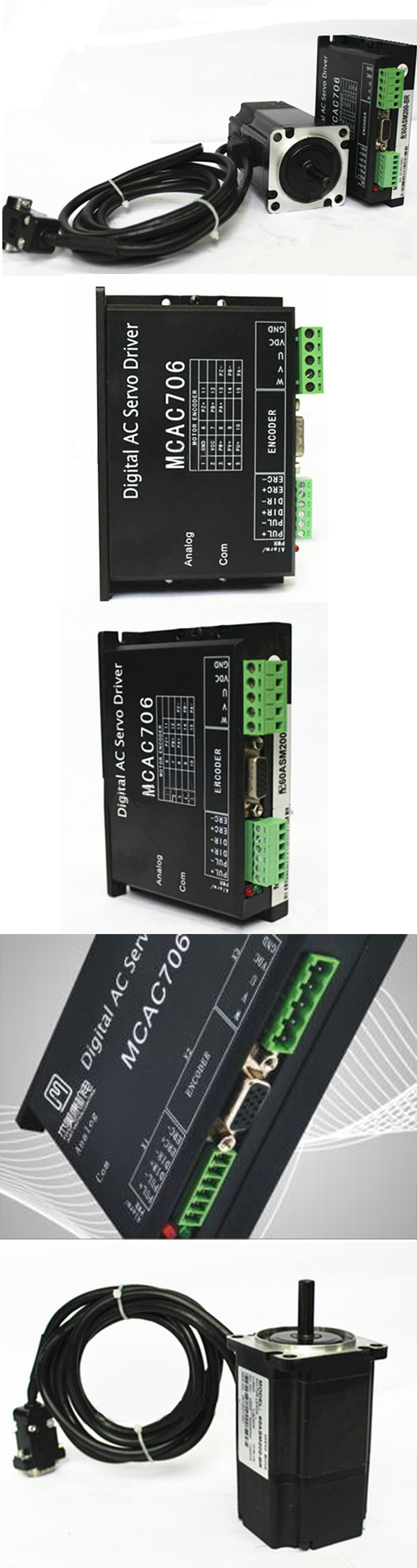

200W MCAC706 + 60ASM200 CNC Digital ac servo driver and  AC servo Brushless motor 3000rpm 0.64N.m Y

　Note：This item Encoder line is 1250 .

  • Description:

    MCAC706 all-digital AC servo drive system  adopts high-performance digital signal processor (DSP) and integrated circuit,  and come out to be a cost effective product with simple circuit, high  integration, easy operation, and strong practicability. MCAC706 provide three  feedback loops:(position loop, velocity loop and current loop). Three work  control mode: position, velocity and torque

    Feature:

    1.    Can drive 25 ~ 400 w ac servo motor

    2.    Position control: input (PULSE/DIR) or (CW/CCW)

    3.    Speed control: input analog 0 V ~ + 3.3 V voltage  signal

    4.    Torque control: input analog 0 V ~ + 3.3 V voltage  signal

    5.    Over-current, over-voltage, undervoltage,  overheating, speeding, super bad, short circuit protection

    6.    Green light means running,  Red light Means  protection or offline

    200W AC servo motor:

    Model

    200W

    Supply voltage(V)

    36

    Rated Power(W)

    200

    Rated torque(N.M)

    0.637

    Peak torque(N.M)

    1.91

    Rate speed(PRM)

    3000

    Rate armature current(A)

    7.6

    Torque coefficient(N.M/A)

    0.0918

    EMF(V/RPM)

    5.36x10-3

    Motor flange seat size(MM)

    60

    Flange diameter(MM)

    50

    Shaft diameter(MM)

    14

    Shaft connection mode

    Belt keyway

    Axial length(MM)

    27.5

    Motor length(MM)

    129

    Pole

    8

    Encoder(Line)

    2500

    Motor weight(KG)

    0.945

    Working temperature

    0-40


    　

　

　

　

What in  Package:

1 x Digital ac servo driver
1 x 200W AC servo motor

　
