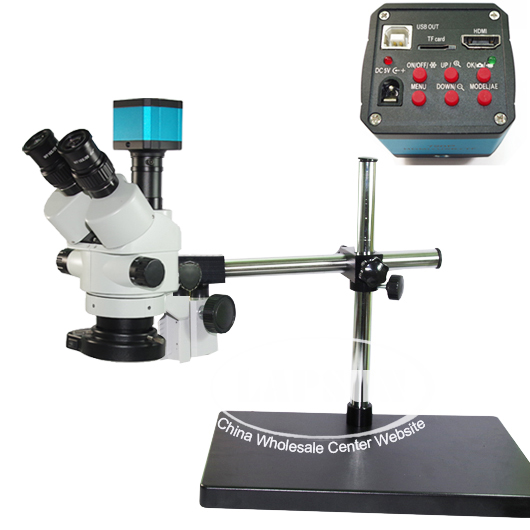

7X-45X Trinocular Industrial Inspection Zoom Stereo Microscope (SZM7045-T2) + 30X-200X HD Digital 14.0MP HDMI USB Microscope Camera + 56-LED Light
Key Feature:
- 7X-45X zoom magnification power with crisp sharp images
- Super widefield high-eyepoint optics
- widefield of view
- 4" (100mm) working distance
- Sturdy all-metal pillar stand
- Powerful 56-LED ring light with dimmer
Feature:
- An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
- 7x-45x super wide zoom magnification power
- Bright cool light 56-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
Specification:

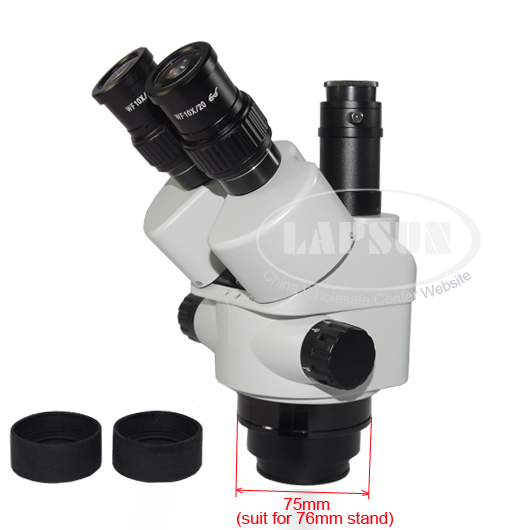

- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter

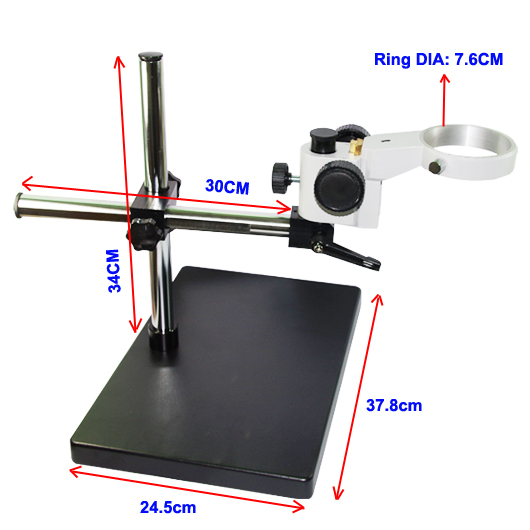

- Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
- Illumination: 56-LED Ring Light
- Power Input: 110-240V, 50-60HZ, Automatic Switching
- Accessories: Paired eye-caps

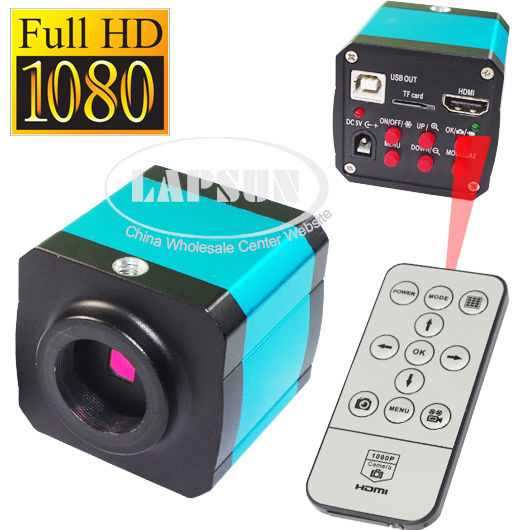

Microscope Camera:
- High Quality, High Resolution, Clear Images
- Japan CMOS
- Encode: H.264 (High Profile)
- TF Card Video Recorder
- 720P 1280*720@30FPS video recorder
- Photo Model / Video Model
- Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
- It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negativeļ¼Compare function
- Supply USB2.0, HDMI HD video, Two output ports
- We sell much to the industy factory, then the works can see the problems directly in the Monitor.
- Model: Camera with HDMI USB2.0 two output
- Sensor: 14.0MP,1/2.8 inch
- Image format: jpg
- Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB),. Video resolution: 1920 *1080 @ 30FPS (USB output @ 25FPS )
- Video format: AVI
- Encode: H.264 (High Profile)
- White Balance: Auto
- Light: Auto
- Color: Color
- Negative: Support
- Morror: Left/right,Up/Down
- Freeze: Support
- OSD: English/Chinese
- Line: different color,4 horizontal line , 4 vertical line,any positions

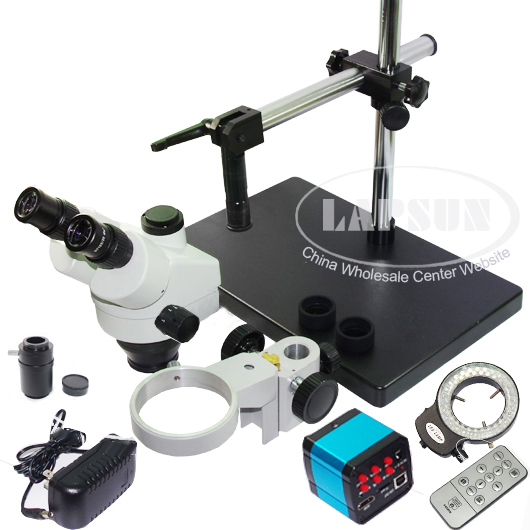

Packing including:
- 1 x Binocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X Eyepieces
- 1 x Microscope Camera
- 1 x Power Supper for Camera
- 1 x 56-LED Ring Light with Adapter
- 1 x Pillar Table Stand
- 1 x Focusing Rack
- 1 x C-mount Adapter
- 1 x Pair of Eye-Guards
- 1 x Pair of Clips
- 1 x Dust Cover
