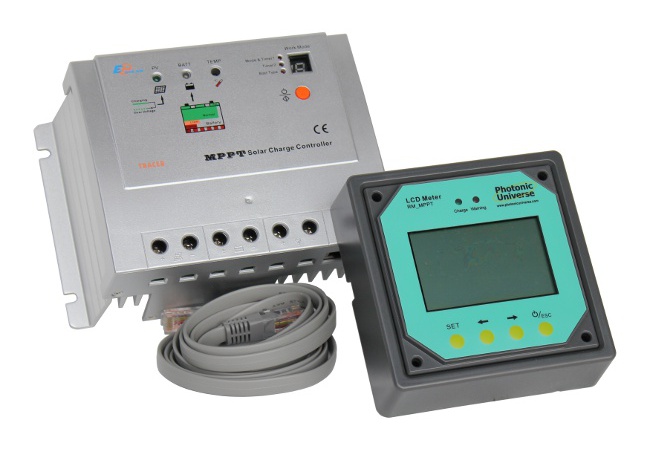

The UK solar power specialist Photonic Universe Ltd is proud to offer this brand new high efficiency 20A MPPT solar charge controller / regulator with remote LCD meter (display) for charging 12/24V batteries by on-grid and off-grid solar panels up to 260W.

Questions about this product?
Read the description below
and click to see our answers to
Frequently Asked Questions
Send your questions by email to
info@photonicuniverse.com
Or call us 0203 150 1111
(int. +44 203 150 1111)
working hours Mon-Fri 9am-6pm
phone payments accepted



This solar charge controller uses the most advanced Maximum Power Point Tracking (MPPT) technology to track the maximum power voltage point of solar panels as it varies depending on sunlight exposure and temperature. This technology ensures the maximum efficiency of your solar system and significantly outperforms standard PWM solar controllers. Another benefit of MPPT technology is the wide solar input voltage range - this controller can work not only with standard off-grid 12/24V solar panels, but also with on-grid panels up to 100V. The maximum combined input solar power allowed for this controller is 260W for 12V battery system or 520W for 24V system, so it's an ideal controller for on-grid (household-type) solar panels up to 260W. In particular, this controller will significantly increase efficiency of a solar system where the solar panel voltage is much higher than the battery voltage (e.g. charging a 12V battery with a 36V solar panel).

The controller features a comprehensive set of electronic protection functions such as stopping reverse current at night (from the battery back to the solar panel), automatic cut off to prevent over-charging and deep discharge, over voltage, over load, short circuit and reverse polarity protection.

Other features include dual timer function for load work, "dusk to dawn" settings, LED indicators and a temperature sensor.

The controller comes with a remote LCD meter with 2m cable. This meter can display various charging parameters such as voltage, current (separately for solar panel / load) and the state of charge of the battery. It can also record accumulated battery capacity and min / max voltage.

The unit can work with sealed, gel and flooded batteries and can automatically recognise 12/24V battery systems (note a battery should always be connected to the controller first before connecting a solar panel).

Controller specifications:

  • The most advanced MPPT technology to ensure high efficiency of your solar system
  • Fully automated operation and auto 12/24V selection
  • 3 pairs of terminals (solar panel, battery, load) for wires up to 10mm2
  • Maximum solar panel voltage 100V
  • Maximum solar panel power 260W (12V) / 520W (24V)
  • Temperature sensor for automatic compensation (-5mV/C/cell)
  • Comprehensive electronic protection
  • Self-consumption: <10mA
  • Working temperature: -35C to +55C
  • Size: 17 x 12 x 8 cm
  • Weight: 0.95 kg
  • Multiple mounting holes for ease of installation
The controller comes with a detailed instruction manual (advanced users will benefit from a section explaining MPPT technology).
