KPC-E700NUP1
GENUINE product of KT&C, Made in KOREA
Color Miniature Square Camera with SONY Effio DSP, 3.7mm Pin-hole Lens installed
700 TVL, SONY EX-VIEW CCD II, 2D-DNR, ATR (WDR), OSD, 12V DC, 30mm x 30mm
* The image is for illustration purpose. Actual item may look different.
Descriptions
- 1/3" 960H SONY EXview HAD CCD ll
- Ultra-High Resolution of 700 TVL
- Min. Illumination of 0.05 Lux (Color) (30IRE at F2.0, AGC High)
- 2DNR / ATR (Adaptive Tone-curve Reproduction / Digital WDR)
- Privacy Masking / Motion Detection / Multi-Language OSD
- Compact Size (30 x 30) Square Type
- Multi-Language OSD with Joystick Controller
- 12VDC Power Required
- 3.7mm Flat Pinhole Lens installed, Please contact us for different lens options.

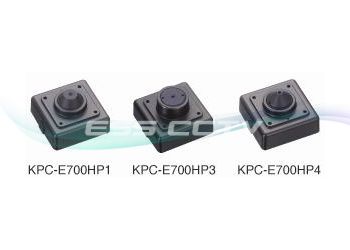

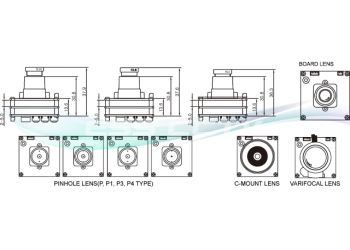

LENS OPTIONS
|
Type |
Board Lens |
Pinhole Lens |
Varifocal Lens(DC12V Only) |
|||||||||
|
P1 |
P3 |
P4 |
||||||||||
|
Focal Length |
2.45 | 2.97 | 3.6 | 4.3 | 6 | 8 | 12 | 16 | 3.7 | 3.7 | 4.3 | 4.0 ~ 8.0 |
|
Aperture |
F2.0 | F2.0 | F2.0 | F2.0 | F2.0 | F2.0 | F2.2 | F2.5 | F2.0 | F2.0 | F2.0 | F2.0 ~ 2.8 |
|
Angle of View |
150˚ |
130˚ |
92˚ |
78˚ |
53˚ |
40˚ |
28˚ |
19˚ |
90˚ |
90˚ |
78˚ |
89.2˚ ~ 44.2˚ |
Specification
| Image Device | 1/3" 960H SONY EXview HAD CCD ll |
| Scanning System | 2:1 Interlace |
| Scanning Frequency | NTSC : 15.734 KHz(H), 59.94 Hz(V) |
| PAL : 15.625 KHz(H), 50 Hz(V) | |
| H. Resolution | 700 TVL |
| Total Pixels | NTSC: 1020(H) x 508(V) / PAL: 1020(H) x 596(V) |
| Effective Pixels | NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V) |
| S/N Ratio | More than 50dB (AGC Off) |
| Min. Illumination | 0.05 Lux (Color) (30IRE F2.0, AGC High) |
| Sync. System | Internal |
| Gamma | r = 0.45 |
| Video Output | 1.0 Vp-p Composite (75Ω) |
| Lens | Fixed Board, Pinhole, Varifocal Lens Built-in |
| Electronic Shutter | NTSC : 1/60 ~ 1/100,000 sec / PAL : 1/50 ~ 1/100,000 sec |
| BLC | OFF / BLC / HLC |
| White Balance | ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH-LOCK |
| 2DNR | On / Off (Level Adjustable) |
| ATR | On / Off (Level Adjustable) |
| Function | MIRROR / BRIGHTNESS / CONTRAST / SHARPNESS / HUE / GAIN |
| Motion Detection | Zone 4ea |
| Privacy Masking | Zone 4ea |
| Language | English, Japanese, German, French, Russian, Portuguese, Spanish, Chinese |
| OSD | Built-In |
| Operating Temperature | 14˚F ~ 122˚F (-10˚C ~ +50˚C) |
| Storage Temperature | -4˚F ~ 140˚F (-20˚C ~ +60˚C) |
| Power Comsumption | DC12V ±10% Max. 120 mA |

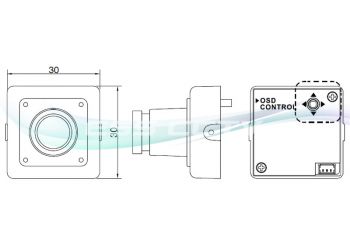

| Dimensions (mm) | 30(W) x 30(H) x 23(D) |
| Weight | Approx. 81g |
